STDatasheet (PDF)

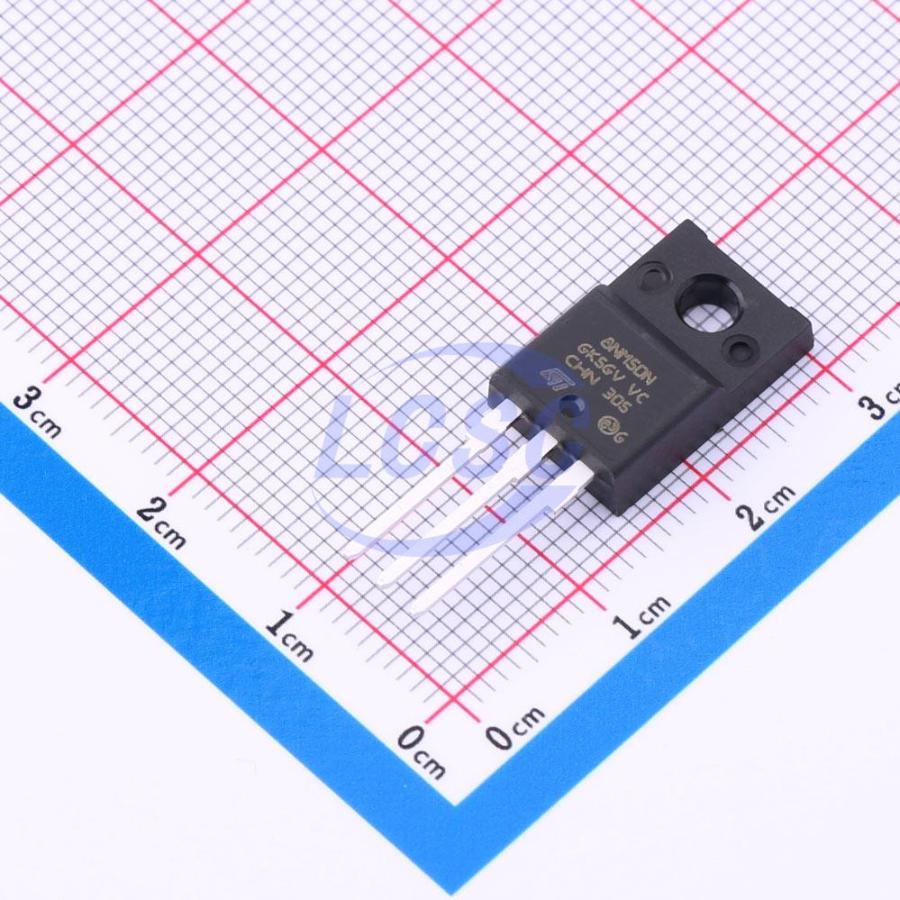

STF8NM50N
N-Channel 500V 5A 20W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 500V 5A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF8NM50N
- Store part #
- C5456239
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79 in stock
#C5456239
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.38 | ₹163.38 |
| 10+ | ₹133.76 | ₹1,337.60 |
| 50+ | ₹117.43 | ₹5,871.50 |
| 100+ | ₹99.19 | ₹9,919.00 |
| 500+ | ₹91.02 | ₹45,510.00 |
| 1,000+ | ₹87.38 | ₹87,380.00 |
1 × ₹163.38
₹163.38
excl. GST
₹192.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF8NM50N
₹163.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 33pF
- Ciss-Input Capacitance
- 364pF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 1.2pF
- RDS(on)
- 790mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@400V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.47 g
Overview
This device is an N-channel Power MOSFET developed using the second generation of MDmesh technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitances and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XR70R750FT#C49305571XNRUSEMI · TO-220F | XNRUSEMI | TO-220F | 17 | ₹73.69 · 17 in stock | View |
 | MJF07N65#C17702004MIRACLE POWER · TO-220F | MIRACLE POWER | TO-220F | 69 | ₹61.19 · 69 in stock | View |
 | STF7N60M2#C221511ST · TO-220FP | ST | TO-220FP | 2 | ₹291.54 · 2 in stock | View |
 | NCE70T900F#C502897NCE · TO-220F | NCE | TO-220F | 49 | ₹79.72 · 49 in stock | View |
 | NCE65T900F#C502916NCE · TO-220F | NCE | TO-220F | 51 | ₹113.50 · 51 in stock | View |
