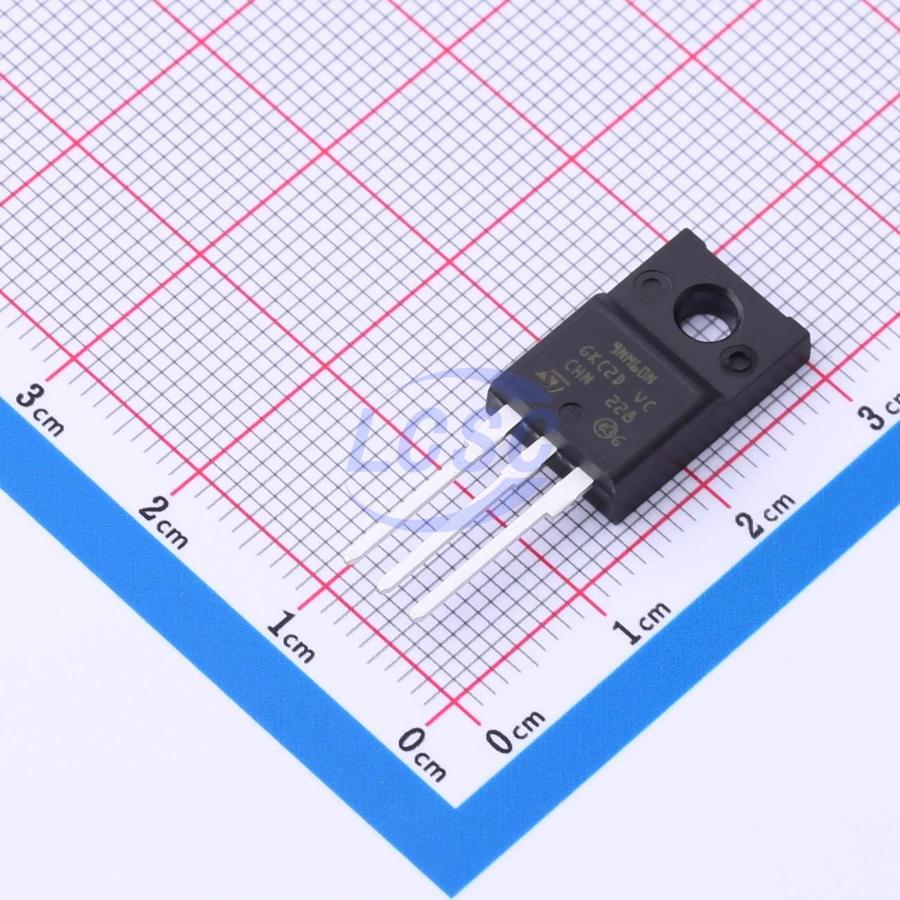

STF9NM60N
N-Channel 600V 6.5A Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 600V 6.5A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STF9NM60N
- Store part #
- C5356985
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C5356985
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹315.73 | ₹315.73 |
| 10+ | ₹266.41 | ₹2,664.10 |
| 50+ | ₹235.56 | ₹11,778.00 |
| 100+ | ₹204.05 | ₹20,405.00 |
| 500+ | ₹189.70 | ₹94,850.00 |
| 1,000+ | ₹183.62 | ₹1,83,620.00 |
1 × ₹315.73
₹315.73
excl. GST
₹372.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF9NM60N
₹315.73 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 30pF
- Ciss-Input Capacitance
- 452pF
- Pd - Power Dissipation
- 25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 6.5A
- Reverse Transfer Capacitance (Crss)
- 1.45pF
- RDS(on)
- 745mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.4nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.59 g
Overview
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. These revolutionary Power MOSFETs associate a vertical structure to the strip layout to yield one of the lowest on-resistance and gate charge. They are therefore suitable for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF6N95K5#C411400ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 760 | ₹177.23 · 760 in stock | View |
 | STF12N60M2#C2970525ST · TO-220FP | ST | TO-220FP | 20 | ₹289.31 · 20 in stock | View |
 | STF13N60M2#C146208ST · TO-220FPAB-3 | ST | TO-220FPAB-3 | 12,168 | ₹71.84 · 12,168 in stock | View |
 | MOT65R600F#C5143200MOT · TO-220F | MOT | TO-220F | 962 | ₹56.89 · 962 in stock | View |
 | STF11N65M2#C262935ST · TO-220FP | ST | TO-220FP | 38 | ₹182.04 · 38 in stock | View |
