STDatasheet (PDF)

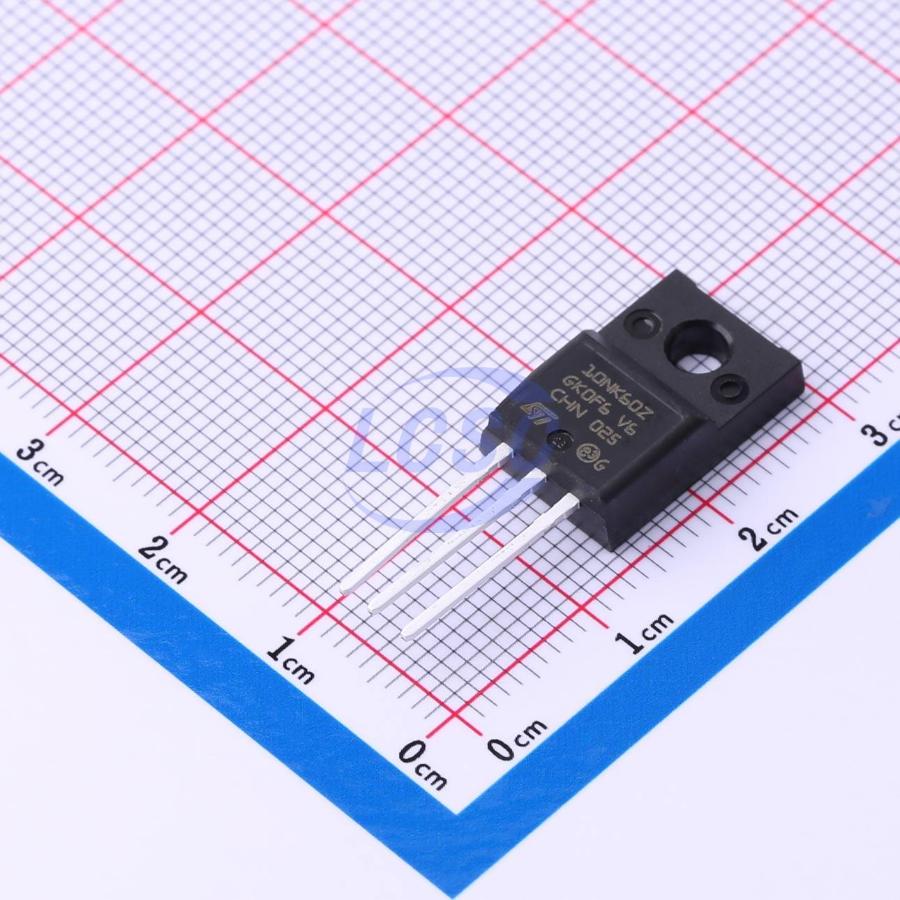

STFU10NK60Z
N-Channel 600V 10A 35W Through Hole TO-220FP
TO-220FPROHS3 CompliantDiscontinued
MOSFET N-CH 600V 10A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STFU10NK60Z
- Store part #
- C3290623
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C3290623
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹478.26 | ₹478.26 |
| 10+ | ₹412.52 | ₹4,125.20 |
| 30+ | ₹373.34 | ₹11,200.20 |
| 100+ | ₹333.94 | ₹33,394.00 |
| 500+ | ₹315.65 | ₹1,57,825.00 |
| 1,000+ | ₹307.39 | ₹3,07,390.00 |
1 × ₹478.26
₹478.26
excl. GST
₹564.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STFU10NK60Z
₹478.26 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.37nF
- Pd - Power Dissipation
- 35W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.97 g
Overview
This high voltage device is a Zener-protected N-channel Power MOSFET developed using the SuperMESH™ technology, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMF65R140#C22391063Cmos · TO-220F | Cmos | TO-220F | 70 | ₹164.24 · 70 in stock | View |
 | STF12NK60Z#C500972ST · TO-220FP | ST | TO-220FP | 1 | ₹158.65 · 1 in stock | View |
 | RSE80R400F#C49317661REASUNOS · TO-220F | REASUNOS | TO-220F | 324 | ₹117.48 · 324 in stock | View |
 | STF12N120K5#C2969969ST · TO-220FP | ST | TO-220FP | 5 | ₹2,159.68 · 5 in stock | View |
 | KIA65R300FS#C135553KIA Semicon Tech · TO-220F-3 | KIA Semicon Tech | TO-220F-3 | 4 | ₹143.33 · 4 in stock | View |
