STDatasheet (PDF)

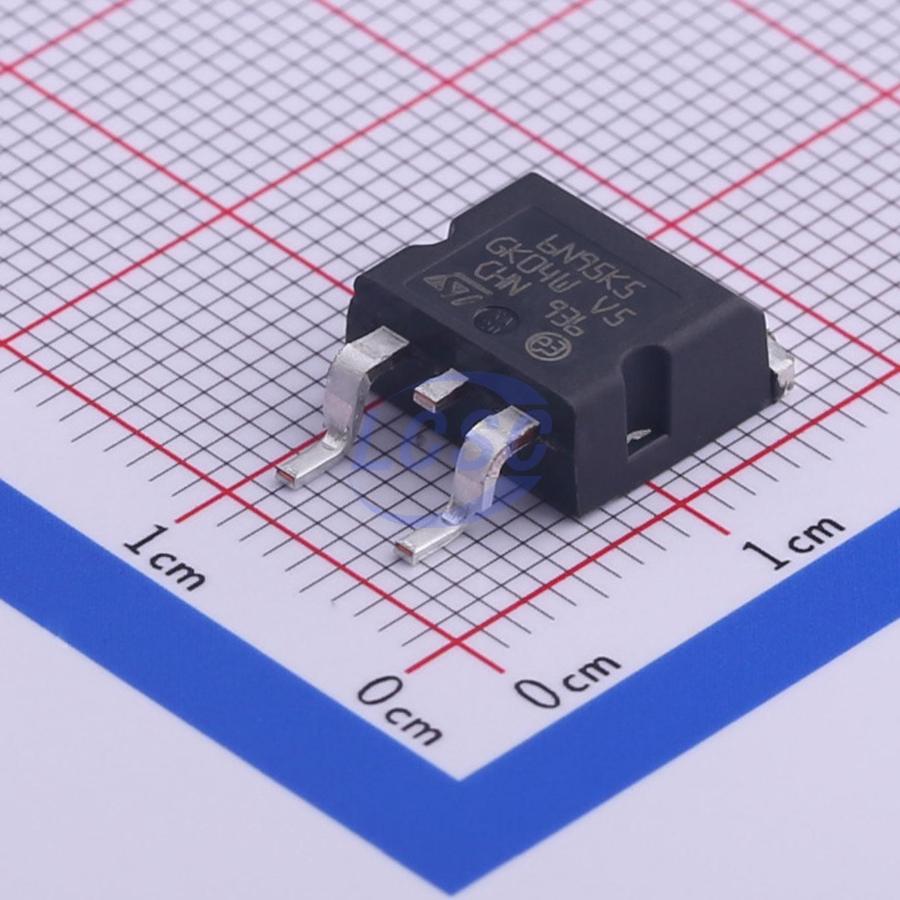

STH6N95K5-2
110W 950V 6A 1.25Ω@10V 1 N-channel N-Channel H2PAK-2 Single FETs, MOSFETs RoHS
H2PAK-2ROHS3 CompliantActive
MOSFET N-CH 950V 6A H2PAK-2
- Manufacturer
- ST
- Manufacturer part #
- STH6N95K5-2
- Store part #
- C472544
- Package / case
- H2PAK-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
103 in stock
#C472544
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.70 | ₹189.70 |
| 10+ | ₹164.50 | ₹1,645.00 |
| 30+ | ₹150.81 | ₹4,524.30 |
| 100+ | ₹135.38 | ₹13,538.00 |
| 500+ | ₹128.42 | ₹64,210.00 |
| 1,000+ | ₹125.17 | ₹1,25,170.00 |
1 × ₹189.70
₹189.70
excl. GST
₹223.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STH6N95K5-2
₹189.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 30pF
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 950V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 1.6pF
- RDS(on)
- 1.25Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.812 g
Overview
This ultra-high voltage N-channel power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a significantly reduced on-resistance combined with ultra-low gate charge, making it ideal for applications demanding superior power density and high efficiency.
Applications
- Switching applications
Key features
- Industry-lowest RDS(on) × area product
- Industry-best figure of merit (FoM)
- Ultra-low gate charge
- 100% avalanche tested
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS8N100FE#C3825155MASPOWER · TO-263 | MASPOWER | TO-263 | 372 | ₹171.88 · 372 in stock | View |
 | STH13N120K5-2AG#C2971052ST · H2PAK-2 | ST | H2PAK-2 | 5 | ₹2,228.66 · 5 in stock | View |
 | STH12N120K5-2#C472528ST · H2PAK-2 | ST | H2PAK-2 | 5 | ₹697.90 · 5 in stock | View |
