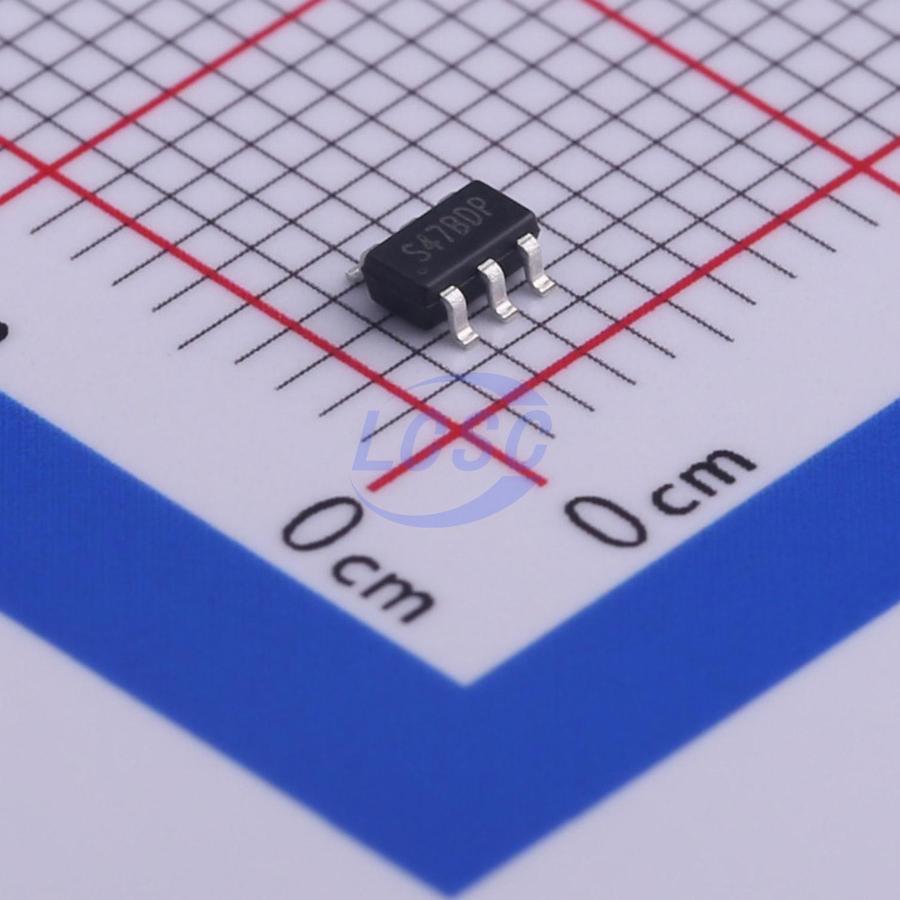

STI3470
Step-down type 600kHz Adjustable 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
High Efficiency 2A Synchronous Step-Down Converter
- Manufacturer
- TMI
- Manufacturer part #
- STI3470
- Store part #
- C478938
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,420 in stock
#C478938
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹12.94 | ₹38.82 |
| 30+ | ₹10.32 | ₹309.60 |
| 90+ | ₹9.02 | ₹811.80 |
| 300+ | ₹8.04 | ₹2,412.00 |
| 1,500+ | ₹7.26 | ₹10,890.00 |
| 3,000+ | ₹6.87 | ₹20,610.00 |
3 × ₹12.94
₹38.82
excl. GST
₹45.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STI3470
₹38.82 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 500uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.023 g
Overview
The STI3470 is a fully integrated, high– efficiency 2.0A synchronous rectified stepdown converter. The STI3470 operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The STI3470 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Notebook computer
- Wireless and DSL Modems
Key features
- High Efficiency: Up to 94%(@5V)
- 600kHz Frequency Operation
- 2.0A Output Current
- No Schottky Diode Required
- 3.5V to 18V Input Voltage Range
- 0.6V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated Internal Compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup-Mode
- Input overvoltage protection (OVP)
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23-6 Package
- -40°C to +85°C Operation Temperature Range
