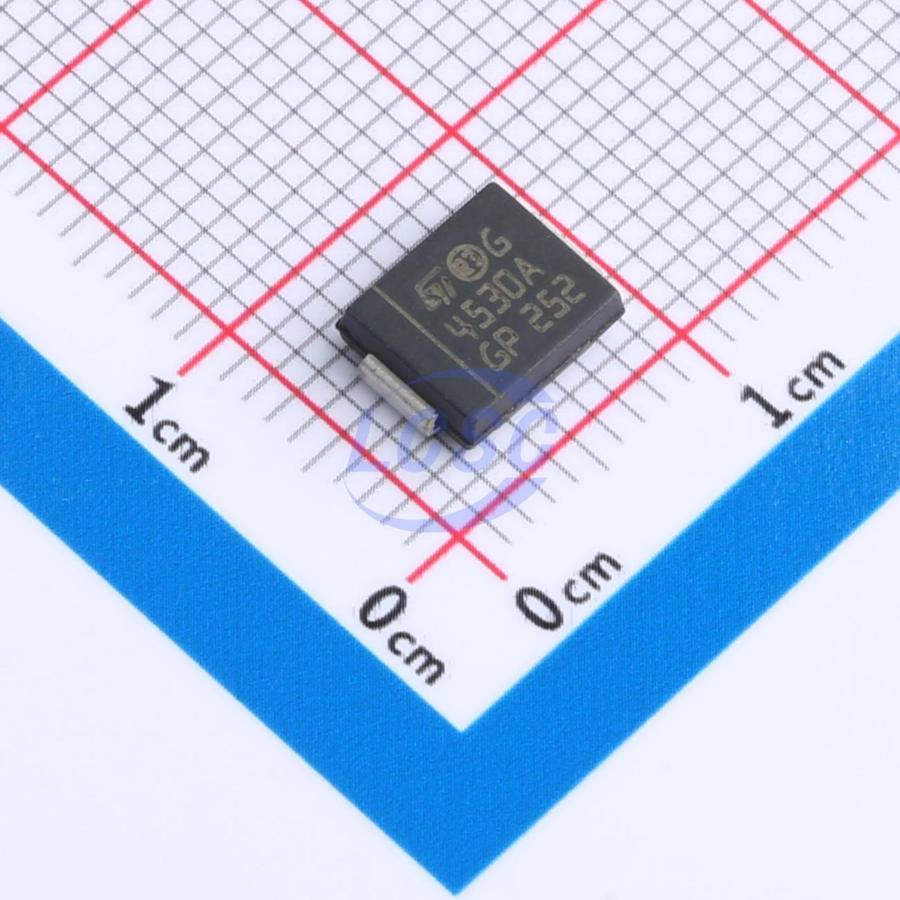

STIEC45-30AS
55VC Clamp 500A@8/20us Ipp TVS DIODE SMC(DO-214AB)
TVS DIODE 30VWM 55VC SMC(DO-214AB)
- Manufacturer
- ST
- Manufacturer part #
- STIEC45-30AS
- Store part #
- C1976656
- Package / case
- SMC(DO-214AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C1976656
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹364.41 | ₹364.41 |
| 10+ | ₹309.22 | ₹3,092.20 |
| 30+ | ₹274.67 | ₹8,240.10 |
| 100+ | ₹239.25 | ₹23,925.00 |
| 500+ | ₹223.16 | ₹1,11,580.00 |
| 1,000+ | ₹216.43 | ₹2,16,430.00 |
1 × ₹364.41
₹364.41
excl. GST
₹430.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STIEC45-30AS
₹364.41 for 1 + GST
Specifications
- Clamping Voltage
- 55V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 500A@8/20us
- Voltage - Breakdown
- 35V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
The STIEC45 Transil series has been designed to protect DC power supply lines according to IEC 61000-4-5. This device protects circuits against electrical fast transients (EFT) according to IEC 61000-4-4 and ETS EN 300 386. Protection against electrostatic discharges is provided according to IEC 61000-4-2 and MIL STD 883 Method 3015. Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. The STIEC45 device is packaged in SMC (SMC footprint in accordance with IPC 7351 standard).
Key features
- Peak pulse current: 500 A (1.2/50 μs, 8/20 μs)
- Stand-off voltage range: from 24 V to 33 V
- Unidirectional types: STIEC45-xxAS Reverse: Clamping starts at VBR Forward: Clamping starts around 0.6 V
- Bidirectional types: STIEC45-xxACS Clamping starts at VBR on both directions
- Low leakage current 0.2 μA at 25 °C, 1 μA at 85 °C
- Operating Tj max: 150 °C
- High peak current capability at Tj max: 410 A, 8/20 μs
- JEDEC registered package outline
- RoHS2 compliant
