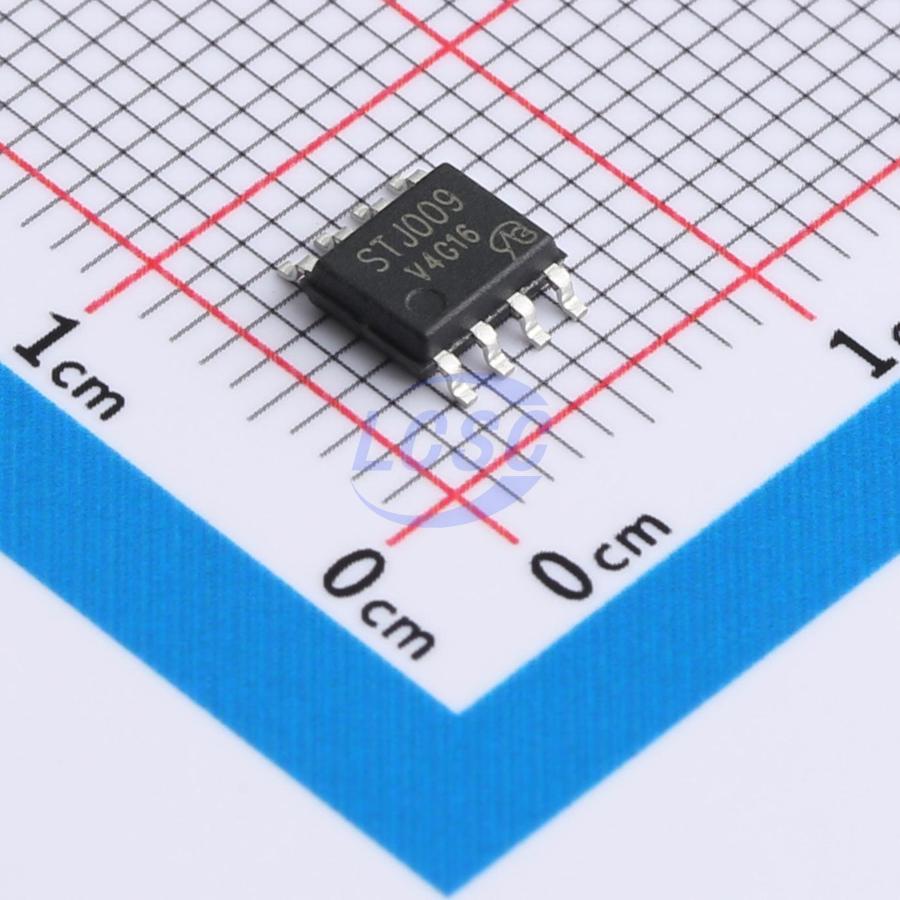

STJ009-VB
P-Channel 30V 5.8A 1.3W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 5.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STJ009-VB
- Store part #
- C29779209
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779209
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.49 | ₹182.45 |
| 50+ | ₹28.64 | ₹1,432.00 |
| 150+ | ₹25.30 | ₹3,795.00 |
| 500+ | ₹21.10 | ₹10,550.00 |
| 2,500+ | ₹19.24 | ₹48,100.00 |
| 4,000+ | ₹18.11 | ₹72,440.00 |
5 × ₹36.49
₹182.45
excl. GST
₹215.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
STJ009-VB
₹182.45 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.8A
- Pd - Power Dissipation
- 1.3W
- RDS(on)
- 33mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
Applications
- Load switch for portable applications
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI9435BDY-T1-E3-VB#C558275VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹48.47 · 50 in stock | View |
 | ME9435-VB#C693425VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹40.59 · 40 in stock | View |
 | IRF7205TRPBF-VB#C7463682VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 70 | ₹38.42 · 70 in stock | View |
 | HAT1020R-VB#C7524955VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹38.42 · 10 in stock | View |
 | GSC9435SC-VB#C7568841VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 15 | ₹38.42 · 15 in stock | View |
