STDatasheet (PDF)

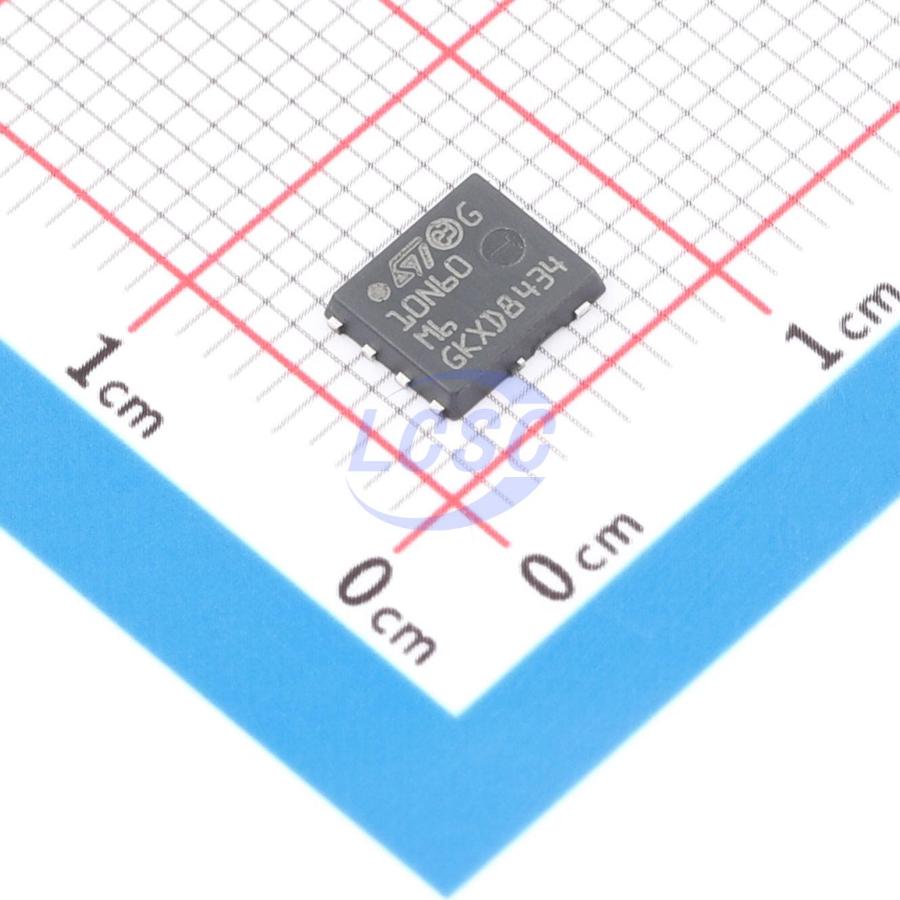

STL10N60M6
48W 600V 5.5A 660mΩ@10V 1 N-channel N-Channel VDFN-8-Power Single FETs, MOSFETs RoHS
VDFN-8-PowerROHS3 CompliantActive
N-channel, Current:5.5A, Voltage:600V
- Manufacturer
- ST
- Manufacturer part #
- STL10N60M6
- Store part #
- C2970135
- Package / case
- VDFN-8-Power
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2970135
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹578.19 | ₹578.19 |
| 10+ | ₹570.24 | ₹5,702.40 |
| 30+ | ₹564.87 | ₹16,946.10 |
| 100+ | ₹559.48 | ₹55,948.00 |
1 × ₹578.19
₹578.19
excl. GST
₹682.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL10N60M6
₹578.19 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 26.2pF
- Ciss-Input Capacitance
- 338pF
- Pd - Power Dissipation
- 48W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 5.5A
- Reverse Transfer Capacitance (Crss)
- 3.8pF
- RDS(on)
- 660mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4.75V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The new MDmesh™ M6 technology integrates the latest technological advancements into the well-known and established SJ MOSFET MDmesh product family. STMicroelectronics has upgraded its previous-generation MDmesh products with the new M6 technology, which not only significantly improves RDS(on) per unit area, but also delivers excellent switching performance while providing a user-friendly experience to achieve maximum efficiency in end applications.
Applications
- Switching Applications
- LLC Converter
- Boost PFC Converter
Key features
- Reduced switching losses
- Lower RDS(on) per unit area compared to previous generation
- Low gate input resistance
- 100% avalanche tested
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL16N60M6#C2970842ST · VDFN-8-Power | ST | VDFN-8-Power | 95 | ₹686.00 · 95 in stock | View |
 | STL15N65M5#C2970161ST · VDFN-8-Power | ST | VDFN-8-Power | 739 | ₹294.58 · 739 in stock | View |
| STL13N65M2#C2970905ST · VDFN-8-Power | ST | VDFN-8-Power | 100 | ₹152.95 · 100 in stock | View | |
 | STL13N60DM2#C2971520ST · VDFN-8-Power | ST | VDFN-8-Power | 20 | ₹665.67 · 20 in stock | View |
 | STL18N65M5#C2970290ST · VDFN-8-Power | ST | VDFN-8-Power | 34 | ₹751.13 · 34 in stock | View |
