STDatasheet (PDF)

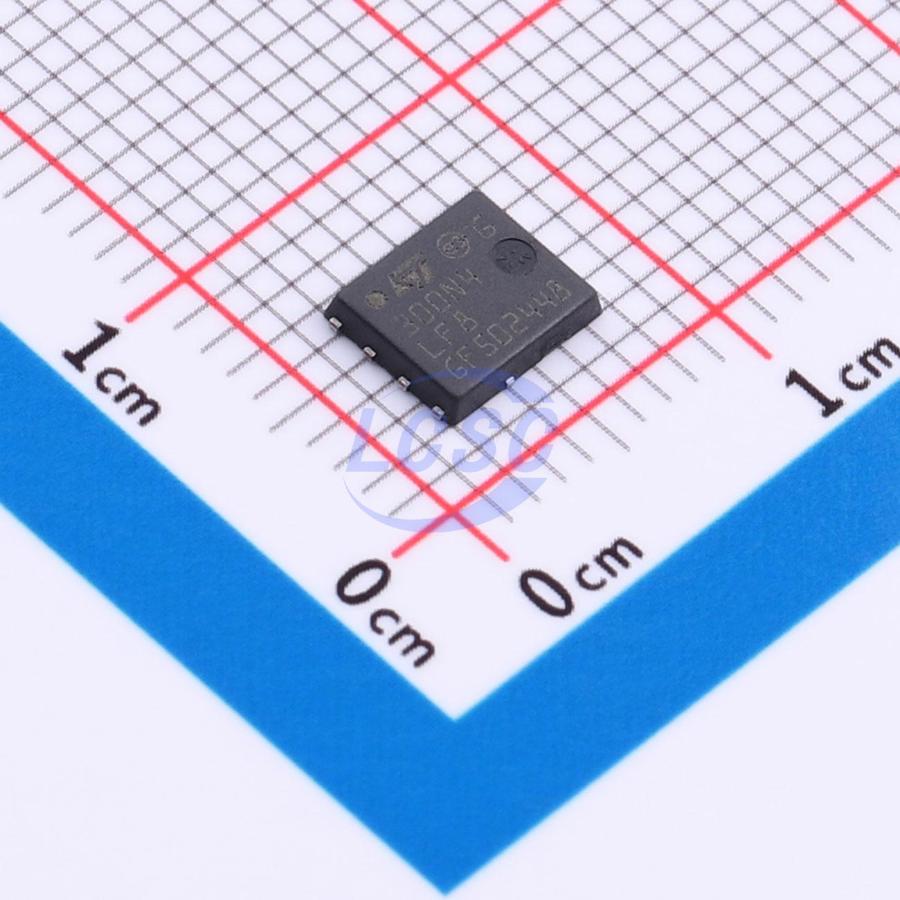

STL300N4LF8
167W 40V 304A 0.8mΩ@10V 1 N-channel N-Channel DFN-8(5x6) Single FETs, MOSFETs RoHS
DFN-8(5x6)ROHS CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STL300N4LF8
- Store part #
- C29603504
- Package / case
- DFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29603504
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹734.24 | ₹734.24 |
| 10+ | ₹724.34 | ₹7,243.40 |
| 30+ | ₹717.90 | ₹21,537.00 |
| 100+ | ₹711.46 | ₹71,146.00 |
1 × ₹734.24
₹734.24
excl. GST
₹866.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL300N4LF8
₹734.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.7nF
- Ciss-Input Capacitance
- 5.4nF
- Pd - Power Dissipation
- 167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 304A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 0.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.44 g
Overview
STL300N4LF8 is a 40V N-channel enhancement-mode power MOSFET built on STripFET F8 technology. Its enhanced trench gate structure delivers industry-leading figure of merit, combining ultra-low on-resistance with reduced internal capacitance and gate charge for faster, more efficient switching.
Applications
- Industrial Tools
- Motor Drives & Equipment
- Industrial Motor Control
- Power Supplies & Converters
Key features
- MSL1 rating
- Maximum operating junction temperature 175°C
- 100% avalanche tested
- Low gate charge Qg
