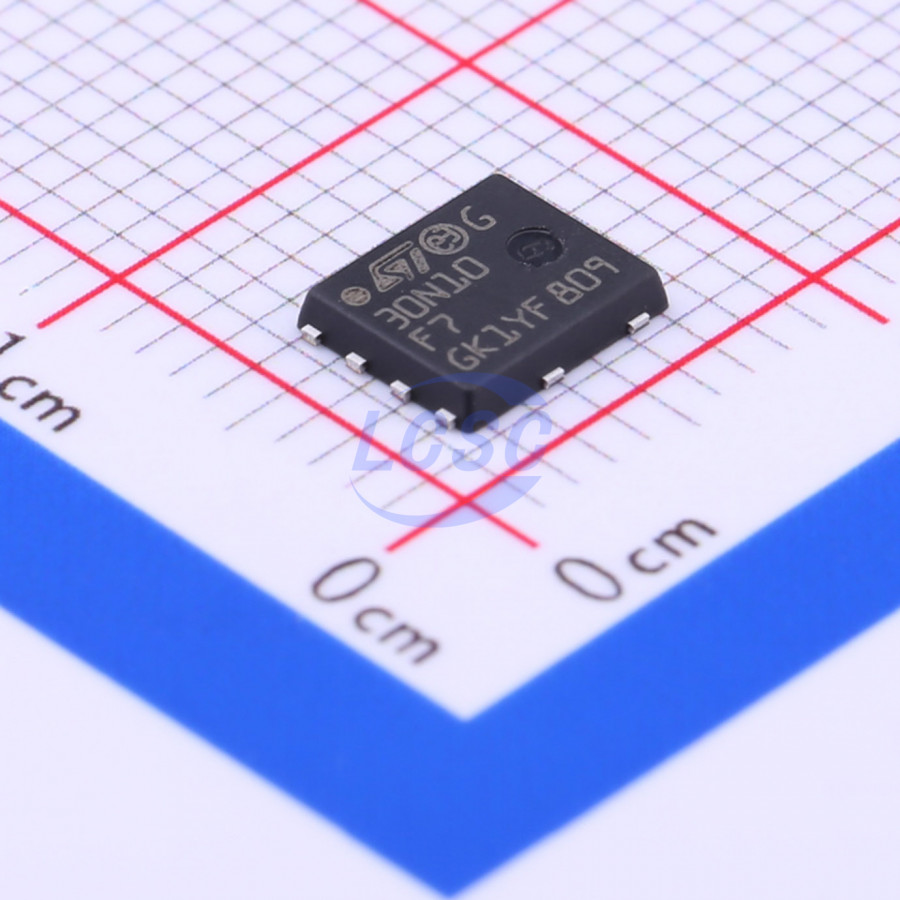

STL30N10F7

75W 100V 30A 35mΩ@10V 1 N-channel N-Channel PowerFLAT(5x6) Single FETs, MOSFETs RoHS

PowerFLAT(5x6)ROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: STL30N10F7
Store part #: C377941
Package / case: PowerFLAT(5x6)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C377941

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹155.81	₹155.81
10+	₹127.78	₹1,277.80
30+	₹112.14	₹3,364.20
100+	₹94.75	₹9,475.00
500+	₹86.92	₹43,460.00
1,000+	₹83.45	₹83,450.00

Quantity (min 1)

1 × ₹155.81

₹155.81

excl. GST

₹183.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL30N10F7

₹155.81 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 215pF
Ciss-Input Capacitance: 920pF
Pd - Power Dissipation: 75W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 100V
Current - Continuous Drain(Id): 30A
Reverse Transfer Capacitance (Crss): 19pF
RDS(on): 35mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 14nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 4.5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.177 g

Overview

This device is an N-channel power MOSFET developed using 7th-generation STripFET DeepGATE technology, featuring a new gate structure. The resulting power MOSFET delivers the lowest on-resistance RDS(on) across all packages.

Applications

Switching applications

Key features

Rated based on Rthj-pcb
Ultra-low on-resistance
100% avalanche tested
