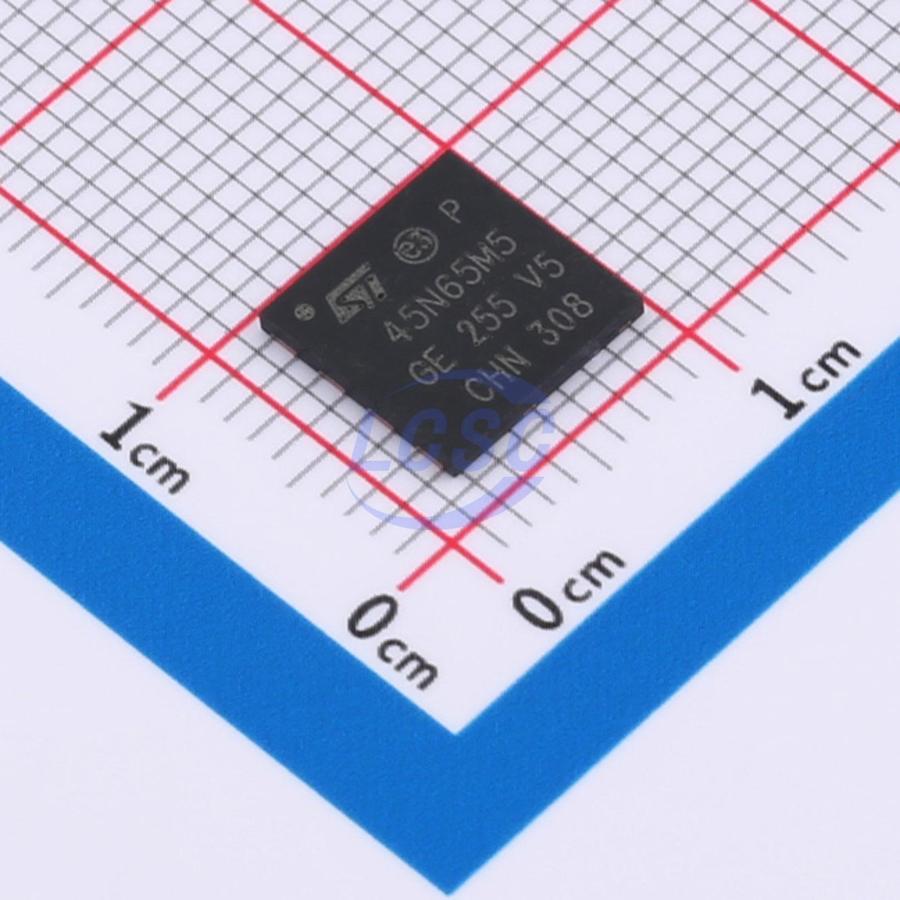

STL45N65M5
160W 650V 22.5A 75mΩ@10V 1 N-channel N-Channel PowerFLAT-HV(8x8) Single FETs, MOSFETs RoHS
PowerFLAT-HV(8x8)ROHS3 CompliantActive
MOSFET N-CH 650V 22.5A PowerFLAT-HV(8x8)
- Manufacturer
- ST
- Manufacturer part #
- STL45N65M5
- Store part #
- C501011
- Package / case
- PowerFLAT-HV(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C501011
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹998.71 | ₹998.71 |
| 10+ | ₹855.94 | ₹8,559.40 |
| 30+ | ₹769.02 | ₹23,070.60 |
| 100+ | ₹696.00 | ₹69,600.00 |
1 × ₹998.71
₹998.71
excl. GST
₹1,178.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STL45N65M5
₹998.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 82pF
- Ciss-Input Capacitance
- 3.47nF
- Pd - Power Dissipation
- 160W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 22.5A
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@520V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.246 g
Overview
This device is an N-channel power MOSFET based on the innovative MDmesh™ M5 vertical process technology combined with the well-established PowerMESH™ horizontal layout. The resulting product features extremely low on-resistance, making it particularly suitable for applications requiring high power and superior efficiency.
Applications
- Switching applications
Key features
- Ultra-low R<sub>DS(ON)</sub>
- Low gate charge and input capacitance
- Excellent switching performance
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STL57N65M5#C501013ST · PowerFLAT(8x8) | ST | PowerFLAT(8x8) | 5 | ₹1,713.52 · 5 in stock | View |
 | MMUB65R090RURH#C51891811MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 179 | ₹176.37 · 179 in stock | View |
 | TK099V65Z,LQ#C7068982TOSHIBA · DFN-5(8x8) | TOSHIBA | DFN-5(8x8) | 5 | ₹1,355.40 · 5 in stock | View |
| MMUB65R115RURH#C51891822MagnaChip Semicon · PDFN88 | MagnaChip Semicon | PDFN88 | 298 | ₹174.11 · 298 in stock | View | |
 | BML60N165UC1#C55805907Bestirpower · DFN-5(8x8) | Bestirpower | DFN-5(8x8) | 155 | ₹140.52 · 155 in stock | View |
