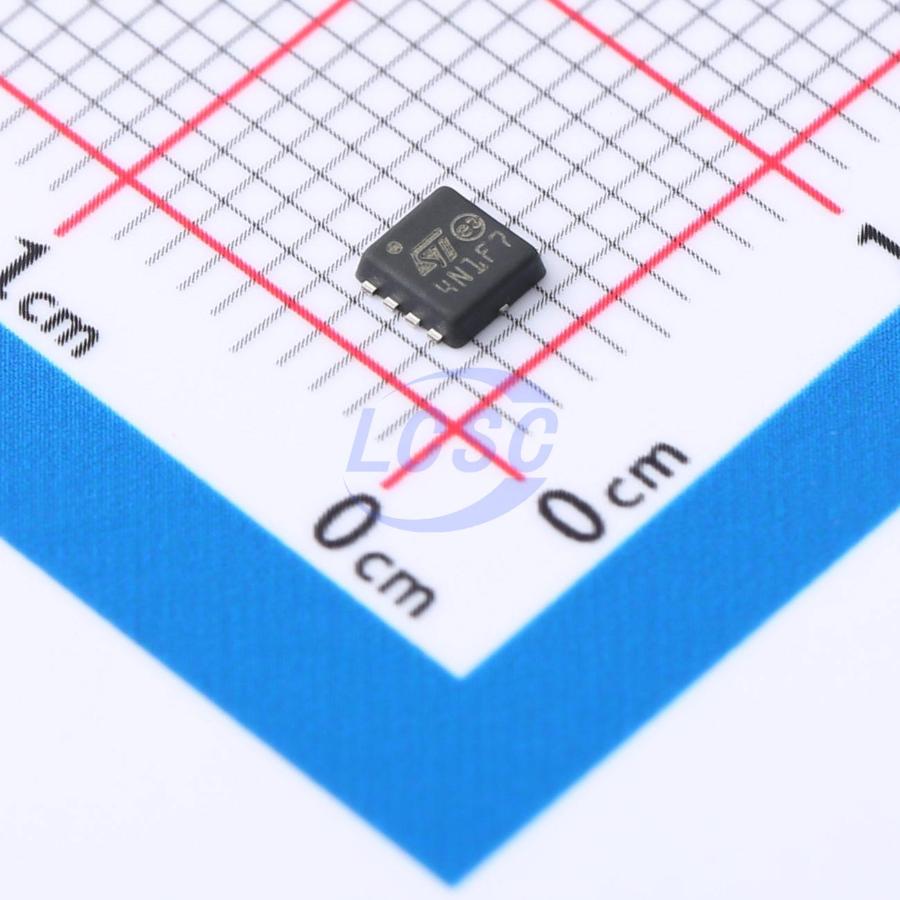

STL4N10F7

2.9W 100V 4.5A 70mΩ@10V 1 N-channel N-Channel PowerFLAT-8(5x6) Single FETs, MOSFETs RoHS

PowerFLAT-8(5x6)ROHS3 CompliantActive

MOSFET N-CH 100V 4.5A PowerFLAT-8(5x6)

Manufacturer: ST
Manufacturer part #: STL4N10F7
Store part #: C672059
Package / case: PowerFLAT-8(5x6)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

149 in stock

#C672059

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹147.99	₹147.99
10+	₹120.60	₹1,206.00
30+	₹106.91	₹3,207.30
100+	₹93.23	₹9,323.00
500+	₹85.19	₹42,595.00
1,000+	₹81.06	₹81,060.00

Quantity (min 1)

1 × ₹147.99

₹147.99

excl. GST

₹174.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL4N10F7

₹147.99 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 112pF
Ciss-Input Capacitance: 408pF
Pd - Power Dissipation: 2.9W
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 100V
Current - Continuous Drain(Id): 4.5A
Reverse Transfer Capacitance (Crss): 10pF
RDS(on): 70mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 7.8nC@50V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 4.5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.138 g

Overview

This N-channel power MOSFET employs STripFET™ F7 technology with an optimized trench gate structure that significantly reduces on-resistance while minimizing internal capacitance and gate charge, enabling faster and more efficient switching operation.

Applications

Switching applications

Key features

Excellent figure of merit (FoM)
Low Crss/Ciss ratio for enhanced EMI immunity
High avalanche ruggedness
