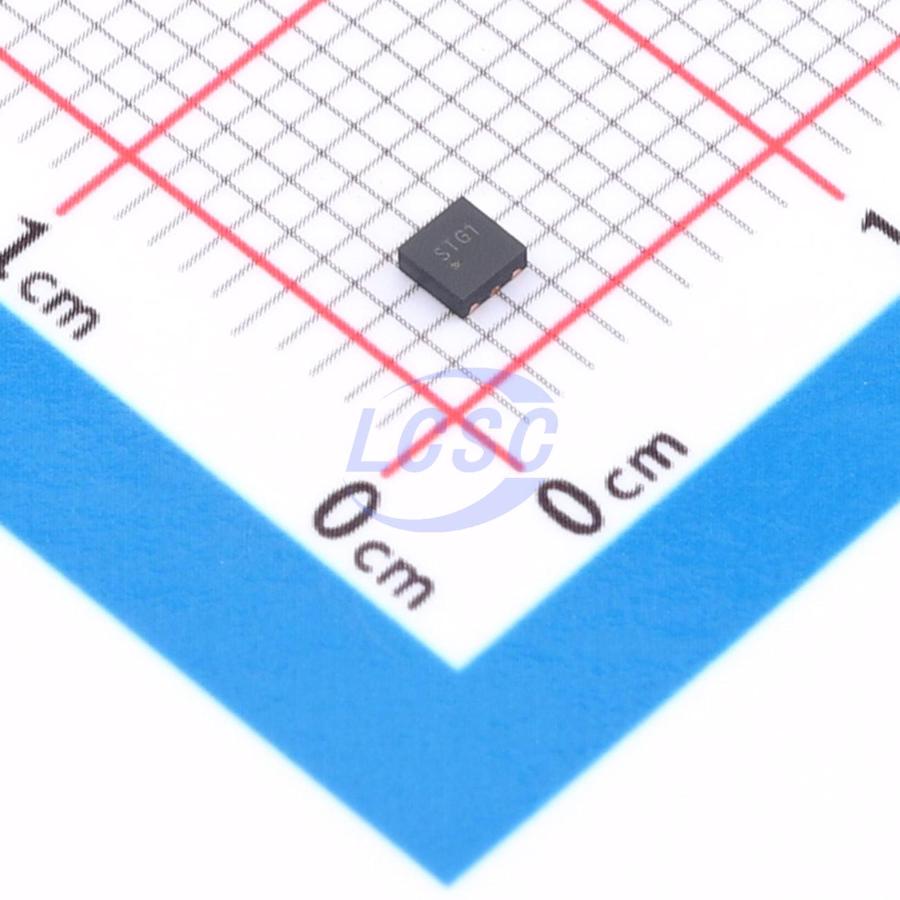

STL6N3LLH6

7.8W 30V 13A 40mΩ@4.5V 1 N-channel N-Channel WDFN-6-Power Single FETs, MOSFETs RoHS

WDFN-6-PowerROHS3 CompliantActive

N-channel, Current:6A, Voltage:30V

Manufacturer: ST
Manufacturer part #: STL6N3LLH6
Store part #: C2969890
Package / case: WDFN-6-Power
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

184 in stock

#C2969890

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹82.83	₹82.83
10+	₹67.00	₹670.00
30+	₹59.19	₹1,775.70
100+	₹51.17	₹5,117.00
500+	₹46.62	₹23,310.00
1,000+	₹44.24	₹44,240.00

Quantity (min 1)

1 × ₹82.83

₹82.83

excl. GST

₹97.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STL6N3LLH6

₹82.83 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 61pF
Ciss-Input Capacitance: 283pF
Pd - Power Dissipation: 7.8W
Drain to Source Voltage: 30V
Operating Temperature: -55℃~+150℃
Current - Continuous Drain(Id): 13A
Reverse Transfer Capacitance (Crss): 31pF
RDS(on): 40mΩ@4.5V
Number: 1 N-channel
Gate Charge(Qg): 3.6nC
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 1V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

This device is an N-channel power MOSFET developed using STripFET H6 technology, featuring a novel trench gate structure. The resulting power MOSFET exhibits extremely low on-state resistance RDS(on) across all packages.

Applications

Switching applications

Key features

Ultra-low on-resistance - Ultra-low gate charge - High avalanche ruggedness - Low gate drive power loss
