TECH PUBLICDatasheet (PDF)

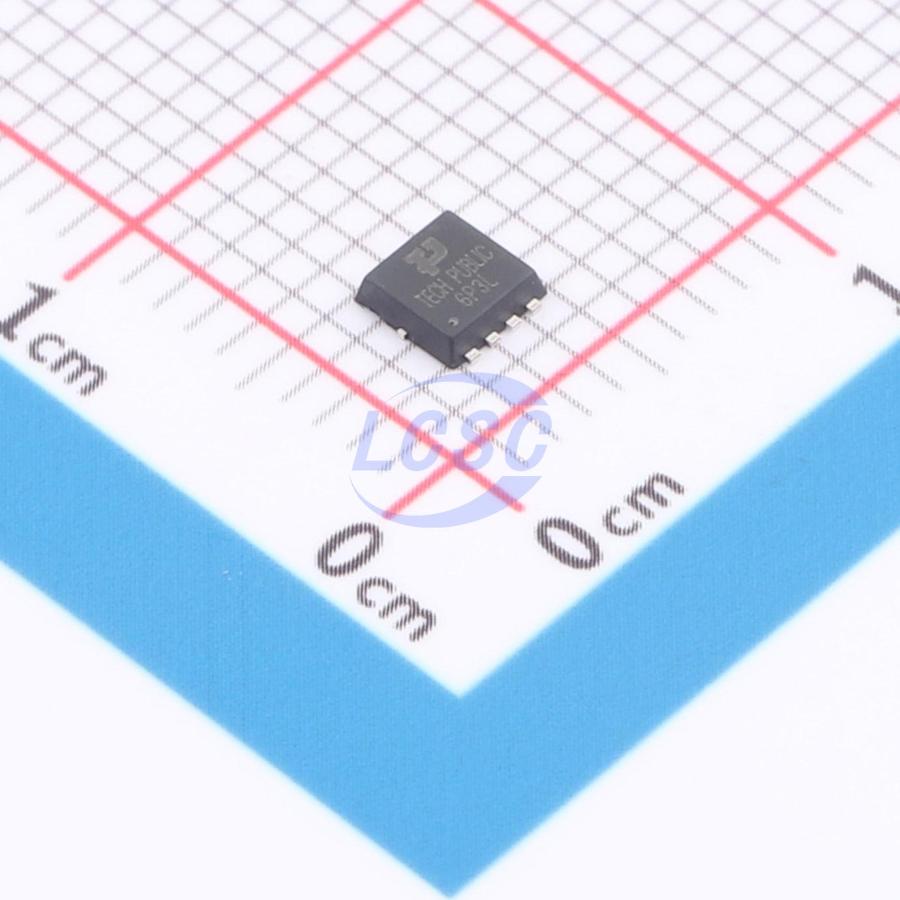

STL6P3LLH6-TP
30V 40A 20W 1 P-Channel PDFN-8L(3x3) Single FETs, MOSFETs RoHS
PDFN-8L(3x3)ROHS CompliantActive
MOSFET 30V 40A PDFN-8L(3x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- STL6P3LLH6-TP
- Store part #
- C49452349
- Package / case
- PDFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C49452349
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.51 | ₹137.55 |
| 50+ | ₹21.49 | ₹1,074.50 |
| 150+ | ₹18.91 | ₹2,836.50 |
| 500+ | ₹15.68 | ₹7,840.00 |
| 2,500+ | ₹14.25 | ₹35,625.00 |
| 5,000+ | ₹13.39 | ₹66,950.00 |
5 × ₹27.51
₹137.55
excl. GST
₹162.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STL6P3LLH6-TP
₹137.55 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 350pF
- Ciss-Input Capacitance
- 2.7nF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 12mΩ@10V;18mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
Applications
- Reverse battery protection
- Load switch
- Power management
- PWM applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3040PD8-2#C49452315TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 500 | ₹32.49 · 500 in stock | View |
 | TPM3040PD8-3#C49452316TECH PUBLIC · PDFN-8(3x3) | TECH PUBLIC | PDFN-8(3x3) | 500 | ₹32.49 · 500 in stock | View |
 | DMP3018SFV-TP#C49452332TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 495 | ₹24.74 · 495 in stock | View |
 | STL9P3LLH6-TP#C49452333TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 5,185 | ₹27.68 · 5,185 in stock | View |
 | WPM3028-TP#C49452334TECH PUBLIC · PDFN-8L(3x3) | TECH PUBLIC | PDFN-8L(3x3) | 1,745 | ₹24.90 · 1,745 in stock | View |
