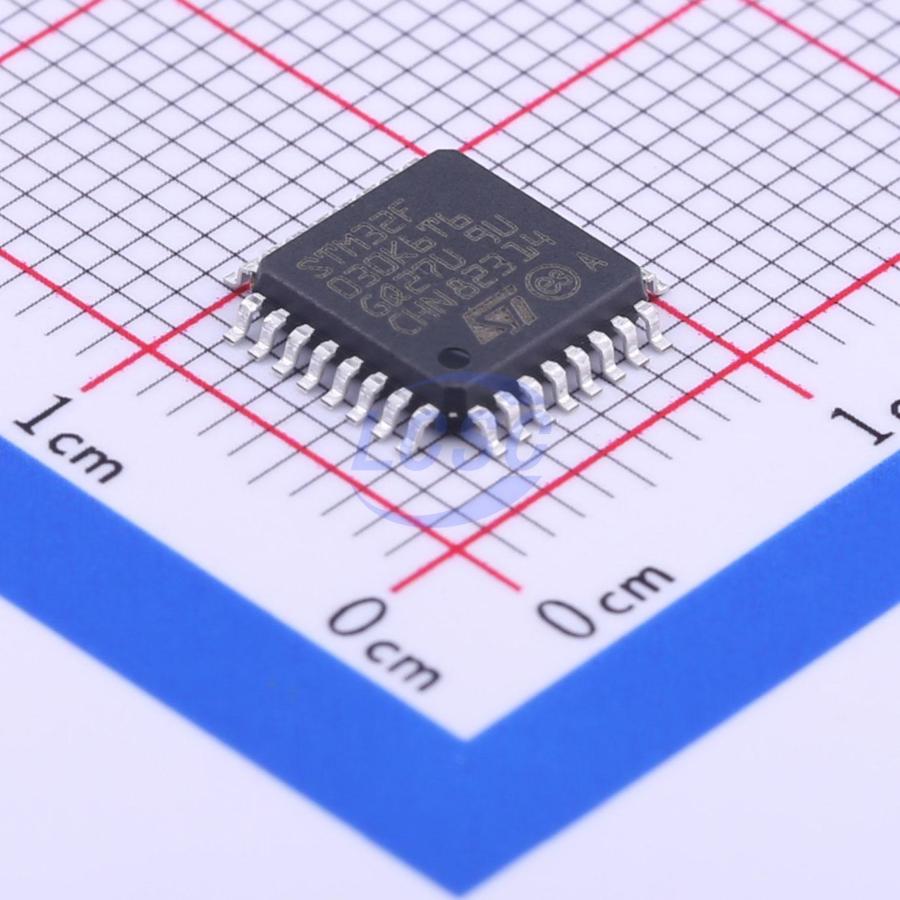

STM32F030K6T6

ARM®-based Value-line 32-bit MCU with up to 256KB Flash, timers, ADC, and communication interfaces, operating voltage range 2.4V to 3.6V.

Key features

• Core: ARM 32-bit Cortex-M0 CPU, frequency up to 48 MHz
• 16 to 256 Kbytes of Flash memory
• 4 to 32 Kbytes of SRAM with HW parity
• CRC calculation unit
• Reset and power management
• Digital & I/Os supply: VDD = 2.4 V to 3.6 V
• Analog supply: VDDA = VDD to 3.6 V
• Power-on/Power down reset (POR/PDR)
• Low power modes: Sleep, Stop, Standby
• 4 to 32 MHz crystal oscillator
• 32 kHz oscillator for RTC with calibration
• Internal 8 MHz RC with x8 PLL option
• Internal 40 kHz RC oscillator
• Up to 55 fast I/Os
• All mappable on external interrupt vectors
• Up to 55 I/Os with 5V tolerant capability
• 5-channel DMA controller
• One 12-bit, 1.0 μs ADC (up to 16 channels)
• Conversion range: 0 to 3.6 V
• Separate analog supply: 2.4 V to 3.6 V
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• 11 timers
• One 16-bit advanced-control timer for six-channel PWM output
• Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
• Independent and system watchdog timers
• SysTick timer
• Communication interfaces
• Up to two I²C interfaces
• one supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink
• one supporting SMBus/PMBus
• Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
• Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames
• Serial wire debug (SWD)
• All packages ECOPACK
