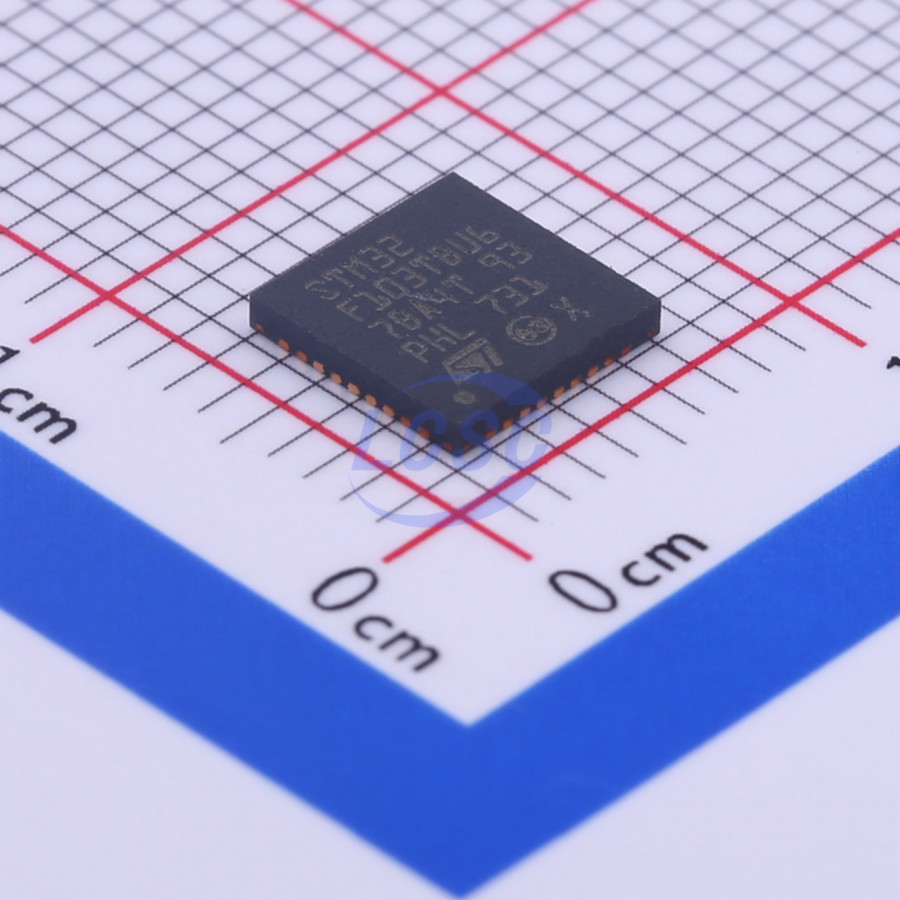

STM32F103TBU6

ARM Cortex-M3 32 Bit 72MHz VFQFPN36(6x6) Microcontrollers RoHS

VFQFPN36(6x6)ROHS3 CompliantActive

Medium-density performance line ARM-based 32-bit MCU with 64 or 128 KB Flash, USB, CAN, 7 timers, 2 ADCs, 9 com. interfaces

Manufacturer: ST
Manufacturer part #: STM32F103TBU6
Store part #: C8363
Package / case: VFQFPN36(6x6)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,219 in stock

#C8363

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹719.47	₹719.47
10+	₹628.43	₹6,284.30
30+	₹550.63	₹16,518.90
100+	₹495.87	₹49,587.00
490+	₹470.67	₹2,30,628.30
980+	₹459.16	₹4,49,976.80

Quantity (min 1)

1 × ₹719.47

₹719.47

excl. GST

₹848.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 490 per tray

STM32F103TBU6

₹719.47 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 12bit
Number of I/O: 26
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~3.6V
Program Memory Type: FLASH
Program Storage Size: 128KB
CPU Core: ARM Cortex-M3
Core Size: 32 Bit
CPU Maximum Speed: 72MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: 3A991A2
Packaging: Tray
Standard pack: 490 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 5.524 g

Overview

This is an ARM-based 32-bit MCU featuring 64 or 128KB Flash, USB interface, CAN interface, 7 timers, 2 ADCs, and 9 communication interfaces.

Key features

ARM 32-bit Cortex-M3 CPU Core – 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access – Single-cycle multiplication and hardware division
Memories – 64 or 128 Kbytes of Flash memory – 20 Kbytes of SRAM
Clock, reset and supply management – 2.0 to 3.6 V application supply and I/Os – POR, PDR, and programmable voltage detector (PVD) – 4-to-16 MHz crystal oscillator Internal 8 MHz factory-trimmed RC – Internal 40 kHz RC – PLL for CPU clock – 32 kHz oscillator for RTC with calibration
Low power – Sleep, Stop and Standby modes – VBAT supply for RTC and backup registers
2x12-bit, 1 µs A/D converters (up to 16 channels) – Conversion range: 0 to 3.6 V – Dual-sample and hold capability – Temperature sensor
DMA – 7-channel DMA controller – Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports – 26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerant
Debug mode Serial wire debug (SWD) & JTAG interfaces
7 timers Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input 16-bit, motor control PWM timer with deadtime generation and emergency stop 2 watchdog timers (Independent and Window) SysTick timer 24-bit downcounter
Up to 9 communication interfaces Up to 2xI²C interfaces (SMBus/PMBus) Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control) Up to 2 SPIs (18 Mbit/s) CAN interface (2.0B Active) USB 2.0 full-speed interface
CRC calculation unit, 96-bit unique ID
Packages are ECOPACK
