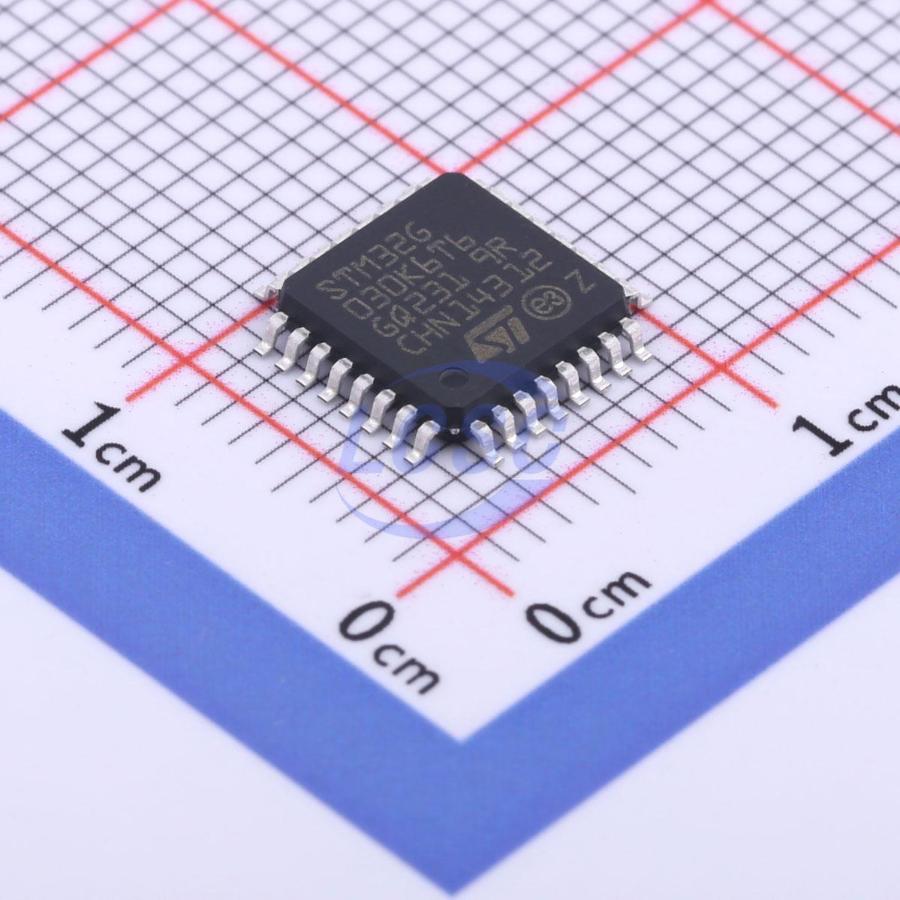

STM32G030K6T6TR

This is an Arm® Cortex®-M0+ 32-bit MCU featuring up to 64 KB Flash, 8 KB RAM, 2 USART interfaces, timers, ADC, and multiple communication interfaces, with an operating voltage range of 2.0V to 3.6V.

Key features

• Core: Arm 32-bit Cortex-M0+ CPU, frequency up to 64 MHz
• -40°C to 85°C operating temperature
• Memories – Up to 64 Kbytes of Flash memory with protection – 8 Kbytes of SRAM with HW parity check
• CRC calculation unit
• Reset and power management – Voltage range: 2.0 V to 3.6 V – Power-on/Power-down reset (POR/PDR) – Low-power modes: Sleep, Stop, Standby – VBAT supply for RTC and backup registers
• Clock management – 4 to 48 MHz crystal oscillator – 32 kHz crystal oscillator with calibration – Internal 16 MHz RC with PLL option – Internal 32 kHz RC oscillator (±5%)
• Up to 44 fast I/Os – All mappable on external interrupt vectors – Multiple 5 V-tolerant I/Os
• 5-channel DMA controller with flexible mapping
• 12-bit, 0.4 µs ADC (up to 16 ext. channels) – Up to 16-bit with hardware oversampling – Conversion range: 0 to 3.6V
• 8 timers: 16-bit for advanced motor control, four 16-bit general-purpose, two watchdogs, SysTick timer
• Calendar RTC with alarm and periodic wakeup from Stop/Standby
• Communication interfaces: Two I²C-bus interfaces supporting Fastmode Plus (1 Mbit/s) with extra current sink, one supporting SMBus/PMBus and wakeup from Stop mode; Two USARTs with master/slave synchronous SPI; one supporting ISO7816 interface, LIN, IrDA capability, auto baud rate detection and wakeup feature; Two SPIs (32 Mbit/s) with 4- to 16-bit programmable bitframe, one multiplexed with I²S interface
• Development support: serial wire debug (SWD)
• All packages ECOPACK 2 compliant
