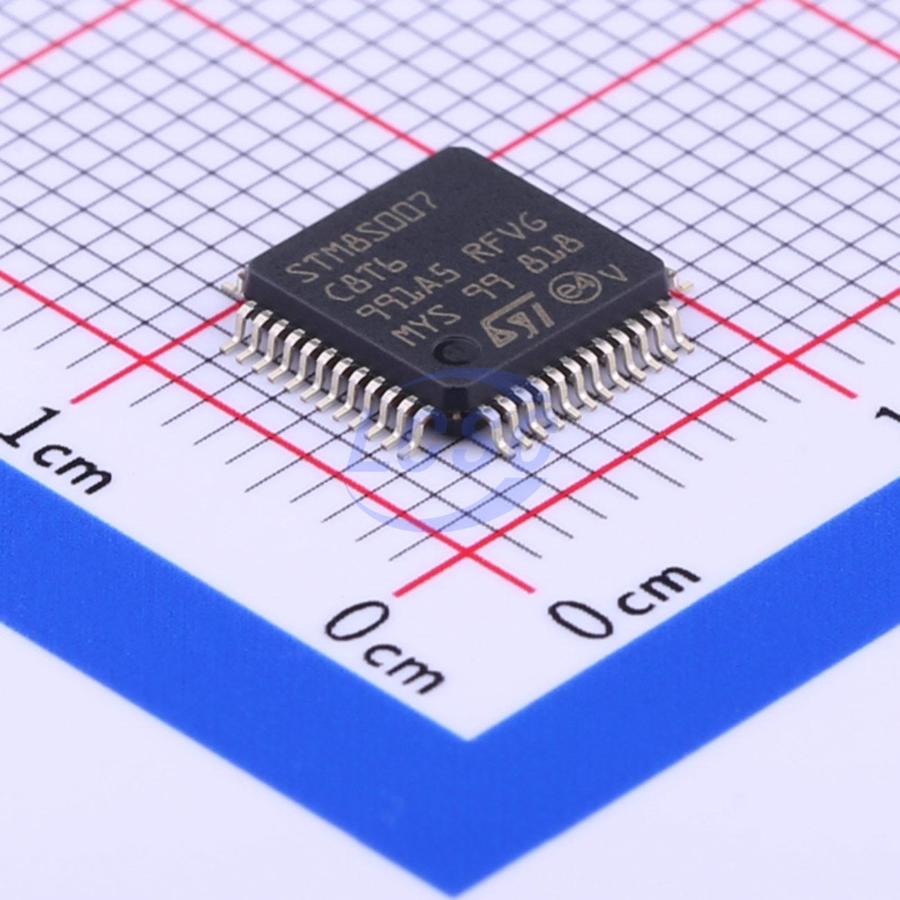

STM8S007C8T6

Key features

• Core
• Max fCPU: up to 24 MHz, 0 wait states @ fCPU ≤ 16 MHz
• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
• Max 20 MIPS @ 24 MHz
• Memories
• Program: 64 Kbytes Flash; data retention 20 years at 55°C after 100 cycles
• Data: 128 bytes true data EEPROM; endurance 100 kcycles
• RAM: 6 Kbytes
• Clock, reset and supply management
• 2.95 to 5.5 V operating voltage
• Low power crystal resonator oscillator
• External clock input
• Internal, user-trimmable 16 MHz RC
• Internal low power 128 kHz RC
• Clock security system with clock monitor
• Wait, active-halt, & halt low power modes
• Peripheral clocks switched off individually
• Permanently active, low consumption power-on and power-down reset
• Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 37 external interrupts on 6 vectors
• Timers
• 2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)
• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, deadtime insertion and flexible synchronization
• 8-bit basic timer with 8-bit prescaler
• Auto wakeup timer
• Window watchdog, independent watchdog
• UART
• UART with clock output for synchronous operation
• LIN master mode UART with LIN 2.1 compliant, master/slave modes and automatic resynchronization
• SPI interface up to 10 Mbit/s
• I²C interface up to 400 Kbit/s
• 10-bit ADC with up to 16 channels
• I/Os
• 38 I/Os including 16 high sink outputs
• Highly robust I/O design, immune against current injection
• Development support
• Single wire interface module (SWIM) and debug module (DM)
