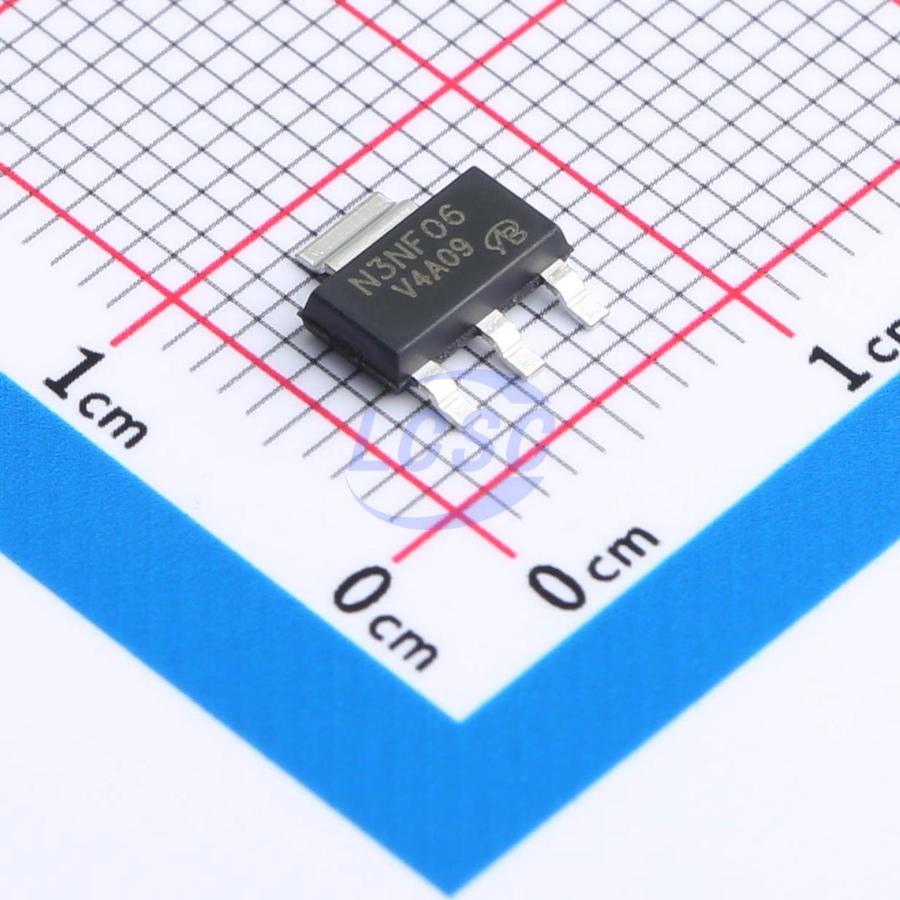

STN3NF06-VB
N-Channel 60V 6A 3.3W Surface Mount SOT-223
SOT-223RoHSActive
MOSFET N-CH 60V 6A SOT-223
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STN3NF06-VB
- Store part #
- C20626285
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C20626285
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.71 | ₹60.71 |
| 10+ | ₹48.10 | ₹481.00 |
| 30+ | ₹42.85 | ₹1,285.50 |
| 100+ | ₹36.13 | ₹3,613.00 |
| 500+ | ₹33.19 | ₹16,595.00 |
| 1,000+ | ₹31.30 | ₹31,300.00 |
1 × ₹60.71
₹60.71
excl. GST
₹71.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STN3NF06-VB
₹60.71 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6A
- Pd - Power Dissipation
- 3.3W
- RDS(on)
- 28mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
Applications
- Load switch for portable applications
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- Maximum junction temperature 175 °C
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLL2705TRPBF-VB#C5438950VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 15 | ₹81.71 · 15 in stock | View |
 | IRLL024ZTRPBF-VB#C5878820VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 2 | ₹59.67 · 2 in stock | View |
 | BUK9840-55-VB#C693360VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 36 | ₹69.02 · 36 in stock | View |
 | BUK9832-55A/CUX-VB#C45662540VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 385 | ₹63.80 · 385 in stock | View |
 | BUK9832-55A-VB#C5438930VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 16 | ₹73.81 · 16 in stock | View |
