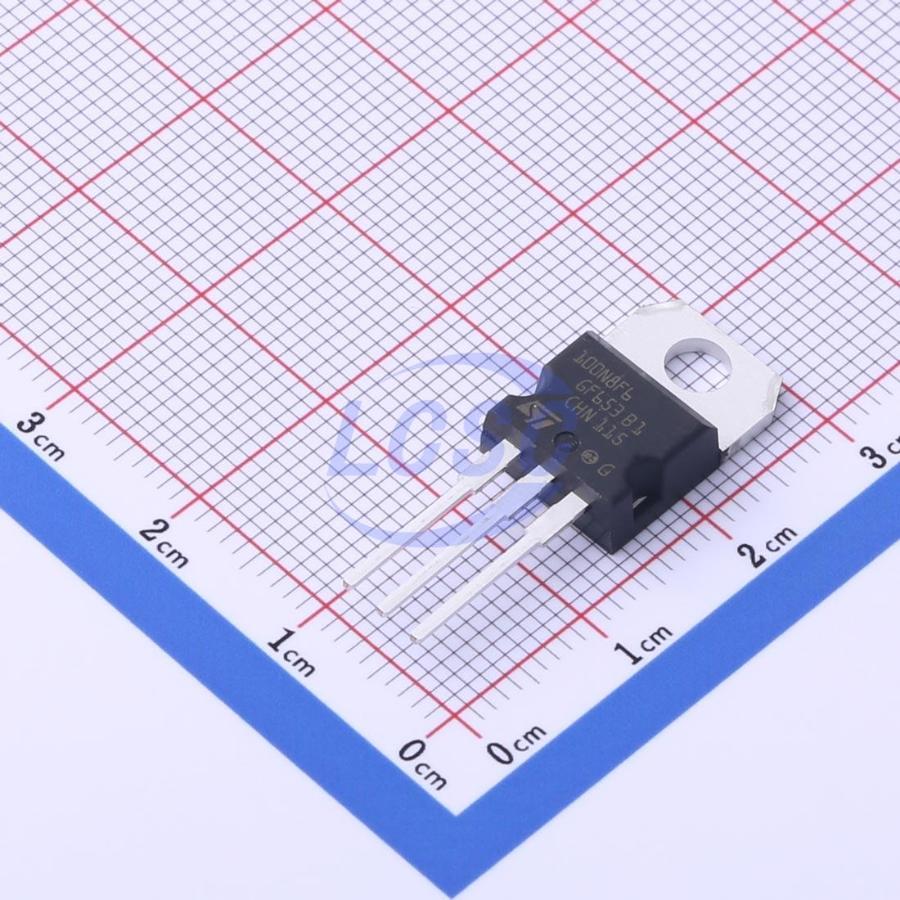

STP100N8F6
N-Channel 80V 100A 176W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 80V 100A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP100N8F6
- Store part #
- C2832821
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C2832821
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.39 | ₹120.39 |
| 10+ | ₹96.45 | ₹964.50 |
| 30+ | ₹84.47 | ₹2,534.10 |
| 100+ | ₹72.50 | ₹7,250.00 |
| 500+ | ₹65.53 | ₹32,765.00 |
| 1,000+ | ₹61.84 | ₹61,840.00 |
1 × ₹120.39
₹120.39
excl. GST
₹142.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP100N8F6
₹120.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 244pF
- Ciss-Input Capacitance
- 5.955nF
- Pd - Power Dissipation
- 176W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
This device is an N-channel Power MOSFET developed using the STripFET™ F6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages.
Applications
- Switching applications
Key features
- Very low on-resistance
- Very low gate charge
- High avalanche ruggedness
- Low gate drive power loss
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSP100N15#C2903572HUASHUO · TO-220 | HUASHUO | TO-220 | 231 | ₹172.66 · 231 in stock | View |
 | E080N8P7AH1#C42458853Existar · TO-220 | Existar | TO-220 | 543 | ₹56.16 · 543 in stock | View |
 | CMP75NF75#C5371895Cmos · TO-220 | Cmos | TO-220 | 5 | ₹76.79 · 5 in stock | View |
 | STP80NF10-VB#C7429129VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 39 | ₹181.66 · 39 in stock | View |
 | SE100130GA#C238633SINO-IC · TO-220 | SINO-IC | TO-220 | 31 | ₹120.60 · 31 in stock | View |
