STDatasheet (PDF)

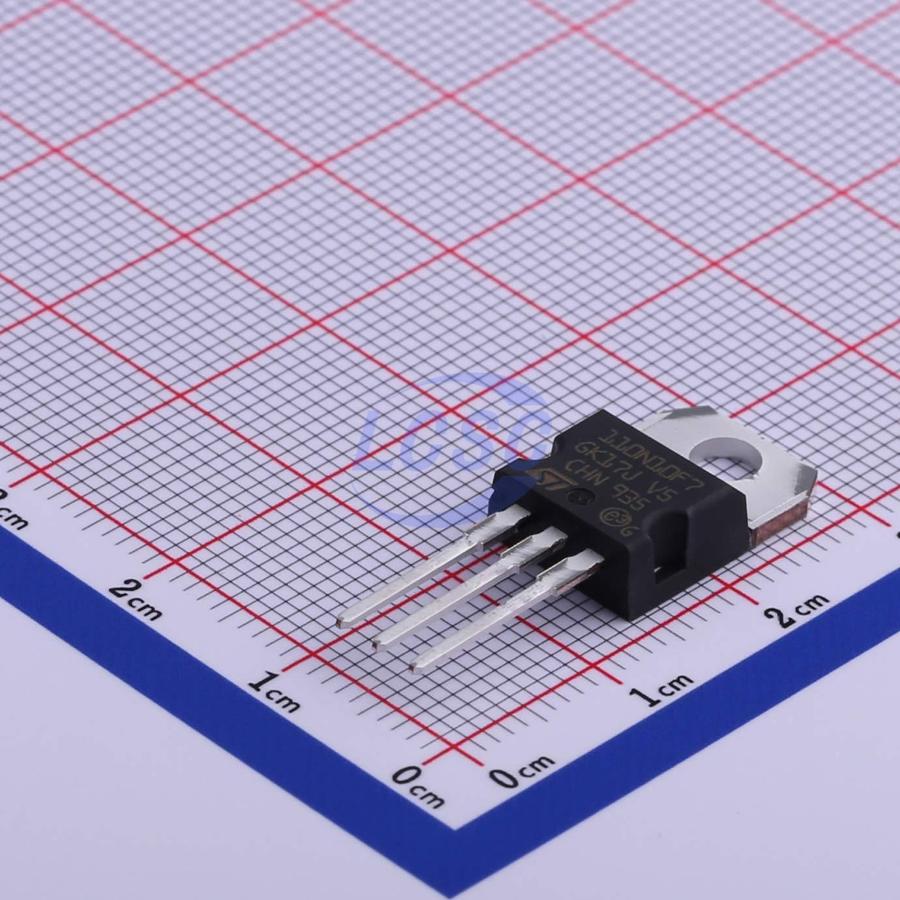

STP110N10F7
150W 100V 110A 5.1mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 110A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP110N10F7
- Store part #
- C472621
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
124 in stock
#C472621
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.31 | ₹207.31 |
| 10+ | ₹179.93 | ₹1,799.30 |
| 50+ | ₹164.94 | ₹8,247.00 |
| 100+ | ₹147.99 | ₹14,799.00 |
| 500+ | ₹140.38 | ₹70,190.00 |
| 1,000+ | ₹136.90 | ₹1,36,900.00 |
1 × ₹207.31
₹207.31
excl. GST
₹244.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP110N10F7
₹207.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 992pF
- Ciss-Input Capacitance
- 5.117nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 110A
- Reverse Transfer Capacitance (Crss)
- 39pF
- RDS(on)
- 5.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.673 g
Overview
These devices feature ST's proprietary STripFET™ technology seventh-generation design rules with a new gate structure. The resulting power MOSFETs deliver ultra-low on-state resistance R<sub>DS(on)</sub> across all package types.
Applications
- Switching applications
Key features
- Ultra-low on-resistance
- 100% avalanche tested
