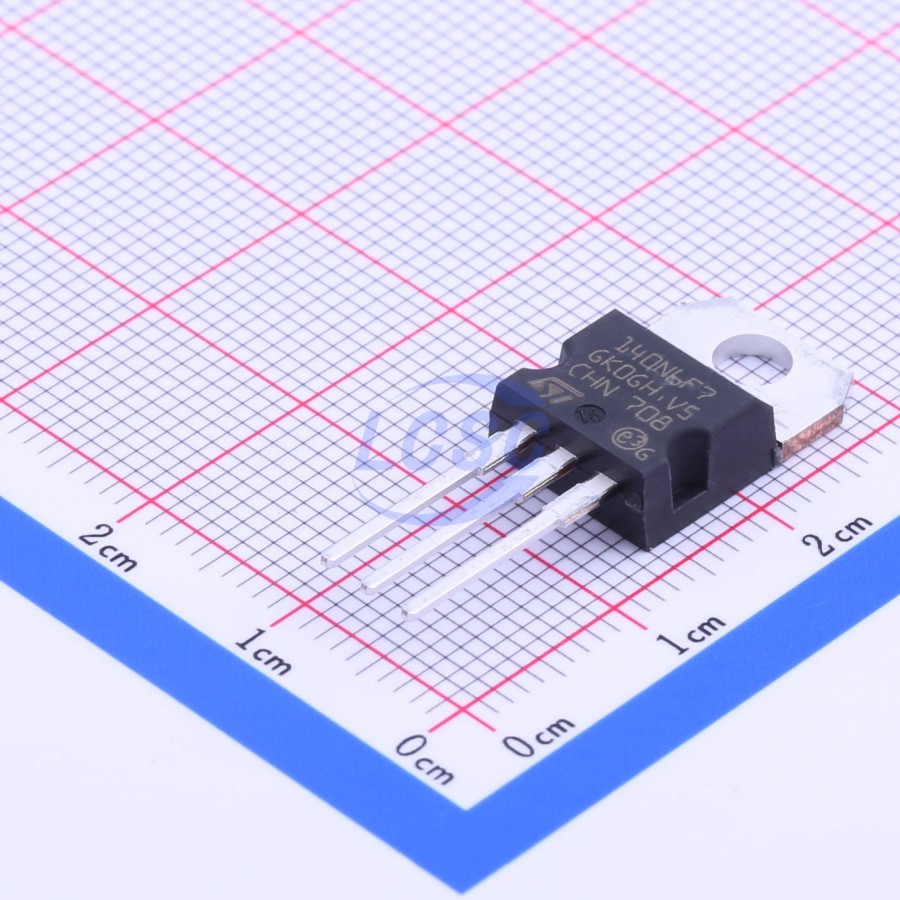

STP140N6F7
N-Channel 60V 80A 158W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 60V 80A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP140N6F7
- Store part #
- C155616
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
83 in stock
#C155616
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.09 | ₹219.09 |
| 10+ | ₹214.27 | ₹2,142.70 |
| 50+ | ₹211.12 | ₹10,556.00 |
| 100+ | ₹207.99 | ₹20,799.00 |
1 × ₹219.09
₹219.09
excl. GST
₹258.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP140N6F7
₹219.09 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.52nF
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 158W
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 193pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 55nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
Applications
- Switching applications
Key features
- Among the lowest R<sub>DS(ON)</sub> in the market
- Excellent figure of merit (FoM)
- Low C<sub>rss</sub>/C<sub>iss</sub> ratio for EMI immunity
- High avalanche ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSP027N06#C54842114HUASHUO · TO-220 | HUASHUO | TO-220 | 2 | ₹92.66 · 2 in stock | View |
 | CRST055N08N#C410925CRMICRO · TO-220 | CRMICRO | TO-220 | 68,426 | ₹62.23 · 68,426 in stock | View |
 | SKD502T#C467184CRMICRO · TO-220 | CRMICRO | TO-220 | 6,963 | ₹56.12 · 6,963 in stock | View |
 | IRFB3607PBF#C2647Infineon · TO-220AB | Infineon | TO-220AB | 25,000 | ₹55.82 · 25,000 in stock | View |
 | MGP054N08N#C49242756Megain · TO-220 | Megain | TO-220 | 1,008 | ₹39.94 · 1,008 in stock | View |
