STDatasheet (PDF)

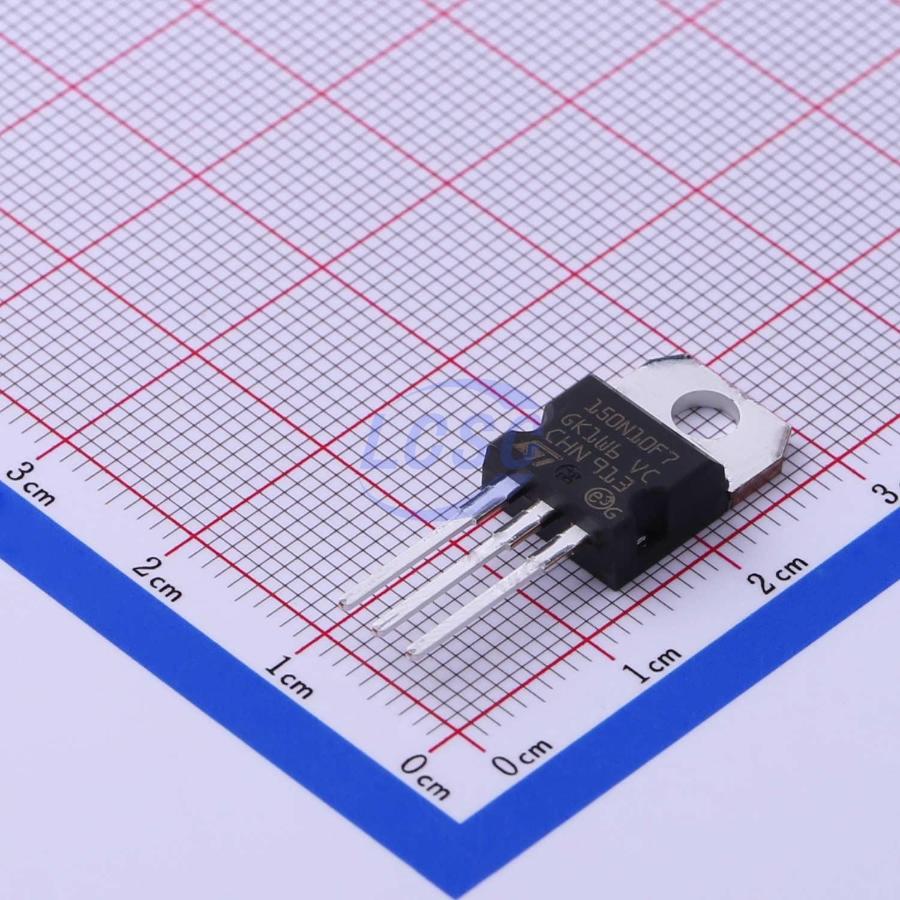

STP150N10F7
N-Channel 100V 110A 250W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 110A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP150N10F7
- Store part #
- C457440
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
161 in stock
#C457440
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.47 | ₹216.47 |
| 10+ | ₹180.10 | ₹1,801.00 |
| 50+ | ₹148.10 | ₹7,405.00 |
| 100+ | ₹125.45 | ₹12,545.00 |
| 500+ | ₹115.64 | ₹57,820.00 |
| 1,000+ | ₹111.07 | ₹1,11,070.00 |
1 × ₹216.47
₹216.47
excl. GST
₹255.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP150N10F7
₹216.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.51nF
- Ciss-Input Capacitance
- 8.115nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 110A
- Reverse Transfer Capacitance (Crss)
- 67pF
- RDS(on)
- 3.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 117nC@50V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.45 g
Overview
These N-channel power MOSFETs utilize STripFET™ F7 technology with an advanced trench gate structure, achieving ultra-low on-resistance while reducing internal capacitance and gate charge for faster, more efficient switching operation.
Applications
- Switching applications
Key features
- One of the lowest R<sub>DS(ON)</sub> on the market
- Excellent figure of merit (FoM)
- Low C<sub>rss</sub>/C<sub>iss</sub> ratio for enhanced EMI immunity
- High avalanche ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK100E10N1,S1X(S#C396029TOSHIBA · TO-220 | TOSHIBA | TO-220 | 1,959 | ₹214.43 · 1,959 in stock | View |
 | HSP0084A#C51025869HUASHUO · TO-220 | HUASHUO | TO-220 | 188 | ₹96.49 · 188 in stock | View |
 | STP15810-JSM#C55111802JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 460 | ₹102.77 · 460 in stock | View |
 | STP150N10F7-JSM#C55112013JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 188 | ₹145.44 · 188 in stock | View |
 | DMTH10H005SCT-JSM#C55112019JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 200 | ₹192.07 · 200 in stock | View |
