STDatasheet (PDF)

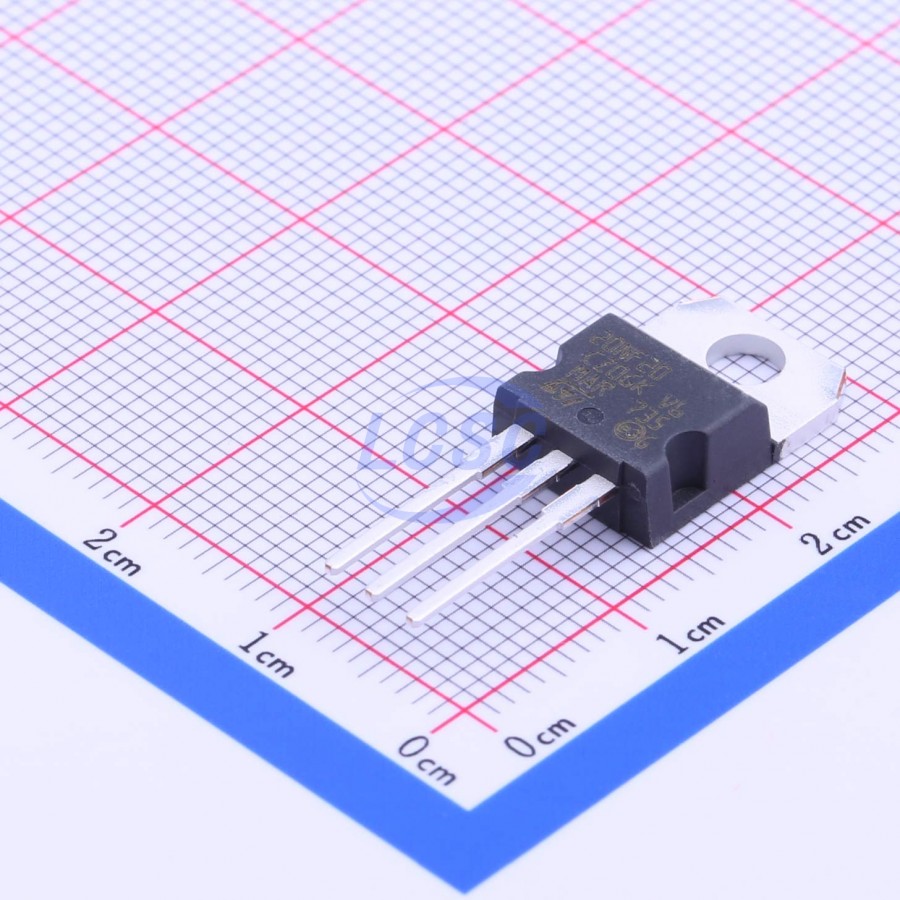

STP20NF20
110W 200V 18A 125mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
MOSFET N-CH 200V 18A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP20NF20
- Store part #
- C155618
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C155618
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.47 | ₹219.47 |
| 10+ | ₹181.24 | ₹1,812.40 |
| 50+ | ₹160.37 | ₹8,018.50 |
| 100+ | ₹136.47 | ₹13,647.00 |
| 500+ | ₹126.04 | ₹63,020.00 |
| 1,000+ | ₹121.25 | ₹1,21,250.00 |
1 × ₹219.47
₹219.47
excl. GST
₹258.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP20NF20
₹219.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 197pF
- Ciss-Input Capacitance
- 940pF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 125mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
This Power MOSFET series realized with STripFET™ process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high - efficiency isolated DC - DC converters.
Applications
- Switching applications
Key features
- Exceptional dv/dt capability
- Low gate charge
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PHP20NQ20T-HXY#C54582846HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 22 | ₹70.26 · 22 in stock | View |
 | PSMN057-200P-HXY#C54582851HXY MOSFET · TO-220C | HXY MOSFET | TO-220C | 17 | ₹342.99 · 17 in stock | View |
 | TSP18N20M#C5199870Truesemi · TO-220 | Truesemi | TO-220 | 80 | ₹53.67 · 80 in stock | View |
 | WSR20N20#C3015215Winsok Semicon · TO-220 | Winsok Semicon | TO-220 | 5 | ₹81.06 · 5 in stock | View |
 | IRF640NPBF-HXY#C19267789HXY MOSFET · TO-220 | HXY MOSFET | TO-220 | 77 | ₹66.35 · 77 in stock | View |
