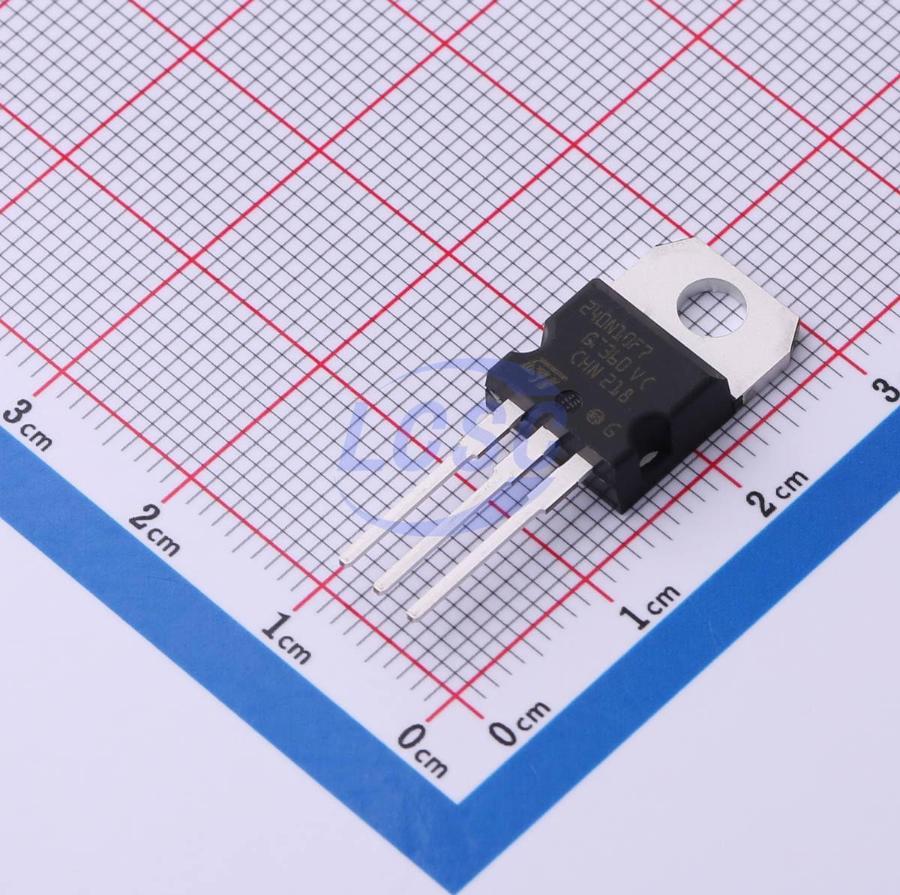

STP240N10F7

N-Channel 100V 110A 300W Through Hole TO-220

TO-220ROHS3 CompliantActive

MOSFET N-CH 100V 110A TO-220

Manufacturer: ST
Manufacturer part #: STP240N10F7
Store part #: C5241016
Package / case: TO-220
Category: Single FETs, MOSFETs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

160 in stock

#C5241016

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹610.21	₹610.21
10+	₹522.02	₹5,220.20
50+	₹449.93	₹22,496.50
100+	₹397.01	₹39,701.00
500+	₹372.62	₹1,86,310.00
1,000+	₹361.73	₹3,61,730.00

Quantity (min 1)

1 × ₹610.21

₹610.21

excl. GST

₹720.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

STP240N10F7

₹610.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 2.95nF
Ciss-Input Capacitance: 11.55nF
Pd - Power Dissipation: 300W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 100V
Current - Continuous Drain(Id): 110A
Reverse Transfer Capacitance (Crss): 217pF
RDS(on): 2.85mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 160nC@50V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.5V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.78 g

Overview

This N-channel Power MOSFET utilizes the STripFETTM F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Applications

High current switching applications

Key features

Ultra low on-resistance
100% avalanche tested
