STDatasheet (PDF)

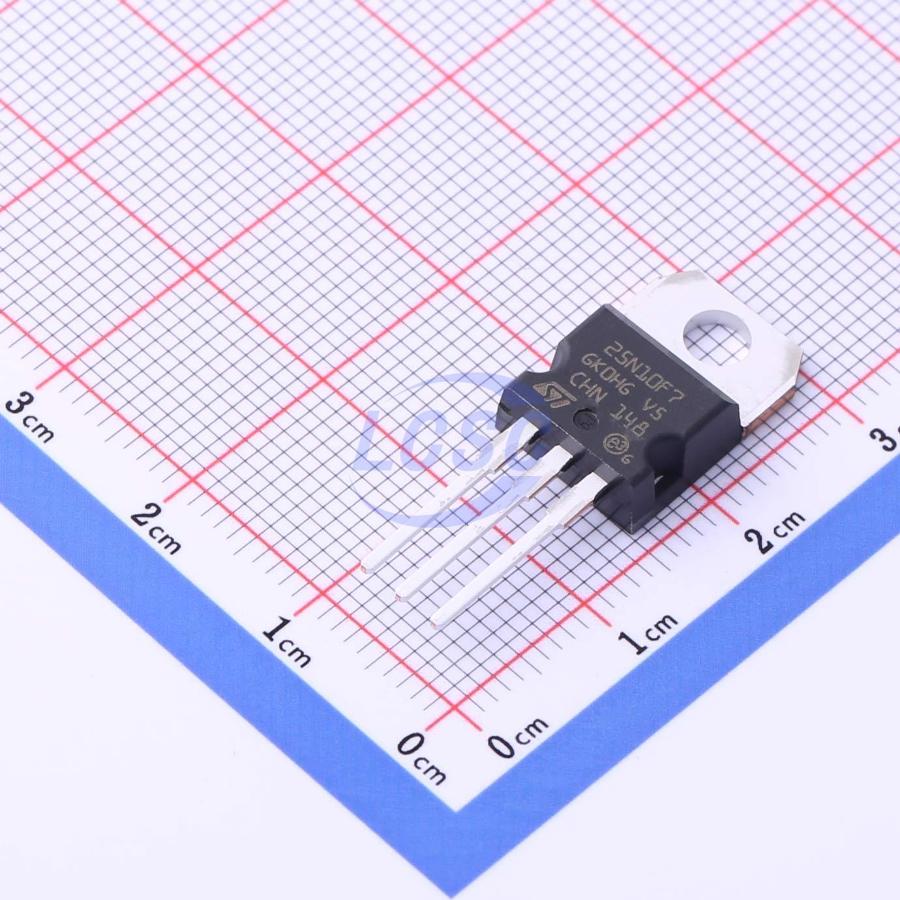

STP25N10F7
N-Channel 100V 25A 50W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 100V 25A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP25N10F7
- Store part #
- C2935187
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C2935187
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.75 | ₹202.75 |
| 10+ | ₹169.57 | ₹1,695.70 |
| 50+ | ₹151.35 | ₹7,567.50 |
| 100+ | ₹130.66 | ₹13,066.00 |
| 500+ | ₹121.45 | ₹60,725.00 |
| 1,000+ | ₹117.35 | ₹1,17,350.00 |
1 × ₹202.75
₹202.75
excl. GST
₹239.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP25N10F7
₹202.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 215pF
- Ciss-Input Capacitance
- 920pF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 19pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.38 g
Overview
These devices utilize the 7th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure. The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.
Applications
- Switching applications
Key features
- Ultra low on-resistance
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDP3682-JSM#C18187639JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 100 | ₹102.77 · 100 in stock | View |
 | STP30NF10-JSM#C18188631JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 230 | ₹44.89 · 230 in stock | View |
 | STP25N10F7-JSM#C18188628JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 53 | ₹35.58 · 53 in stock | View |
 | IPP339N20NM6AKSA1#C29699796Infineon · TO-220-3 | Infineon | TO-220-3 | 62 | ₹365.73 · 62 in stock | View |
 | FDP3672-JSM#C55112073JSMSEMI · TO-220-3 | JSMSEMI | TO-220-3 | 196 | ₹101.75 · 196 in stock | View |
