VBsemi ElecDatasheet (PDF)

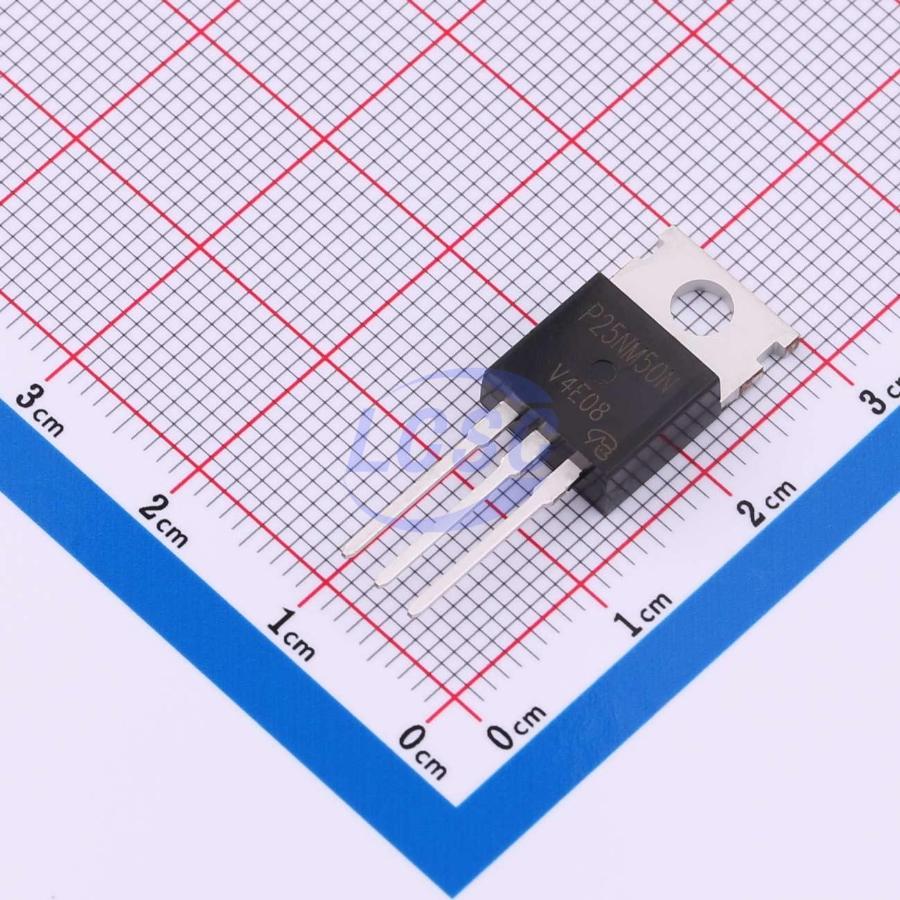

STP25NM50N-VB
N-Channel 500V 18A 280W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 500V 18A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP25NM50N-VB
- Store part #
- C22389223
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C22389223
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹290.93 | ₹290.93 |
| 10+ | ₹246.18 | ₹2,461.80 |
| 50+ | ₹218.26 | ₹10,913.00 |
| 100+ | ₹189.47 | ₹18,947.00 |
| 500+ | ₹176.66 | ₹88,330.00 |
| 1,000+ | ₹170.98 | ₹1,70,980.00 |
1 × ₹290.93
₹290.93
excl. GST
₹343.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP25NM50N-VB
₹290.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.98nF
- Pd - Power Dissipation
- 280W
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 115mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 86nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.36 g
Overview
Applications
- Hard switched topologies
- Power factor correction power supplies (PFC)
- Switch mode power supplies (SMPS)
- Computing - PC silver box / ATX power supplies
- Lighting - Two stage LED lighting
Key features
- Low figure-of-merit (FOM): R(on)×Q(g)
- Low input capacitance (C(iss))
- Reduced switching and conduction losses
- Low gate charge (Q(g))
- Avalanche energy rated (UIS)
- RoHS COMPLIANT HALOGEN FREE
