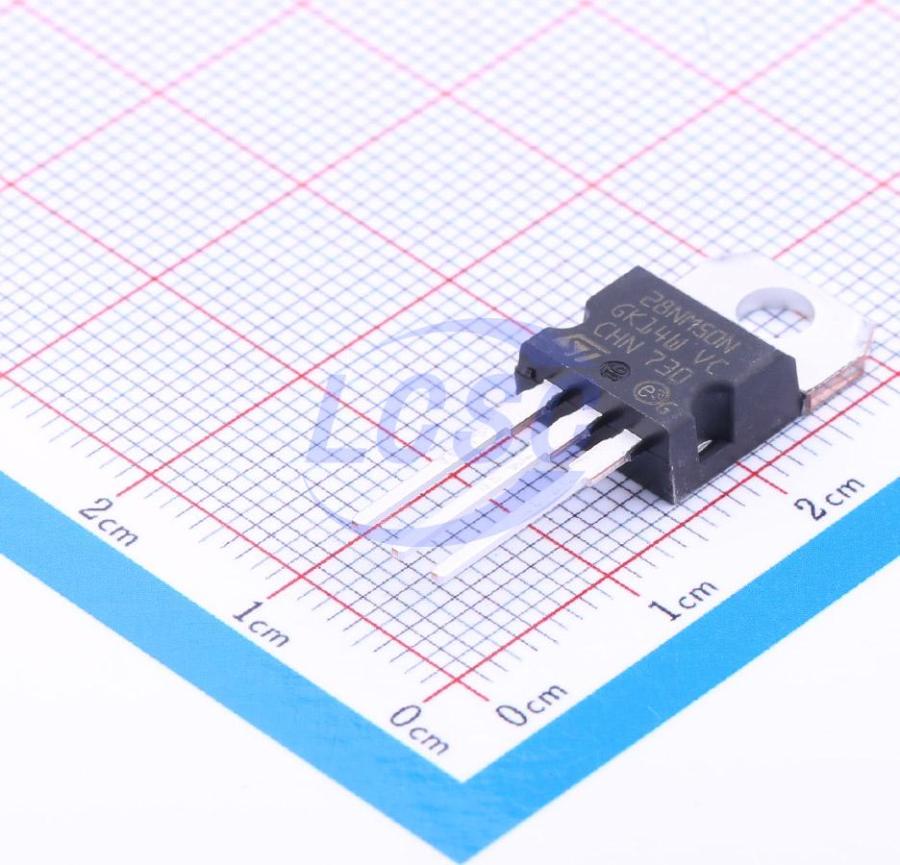

STP28NM50N
N-Channel 500V 21A 150W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 500V 21A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP28NM50N
- Store part #
- C90262
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C90262
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹758.50 | ₹758.50 |
| 10+ | ₹657.99 | ₹6,579.90 |
| 30+ | ₹596.88 | ₹17,906.40 |
| 100+ | ₹545.57 | ₹54,557.00 |
1 × ₹758.50
₹758.50
excl. GST
₹895.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP28NM50N
₹758.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 122pF
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 21A
- Reverse Transfer Capacitance (Crss)
- 4.3pF
- RDS(on)
- 135mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC@400V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the strip layout to yield low on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP28N60M2#C669878ST · TO-220-3 | ST | TO-220-3 | On request | ₹812.79 · 0 in stock | View |
 | IPP50R190CE#C537176Infineon · TO-220 | Infineon | TO-220 | 100 | ₹214.74 · 100 in stock | View |
 | IPP60R125CP#C537202Infineon · TO-220 | Infineon | TO-220 | 4 | ₹2,277.27 · 4 in stock | View |
 | WTM22N65AP#C48642345WPMtek · TO-220 | WPMtek | TO-220 | 27 | ₹184.06 · 27 in stock | View |
 | STP43N60DM2#C472619ST · TO-220 | ST | TO-220 | 6 | ₹380.63 · 6 in stock | View |
