STDatasheet (PDF)

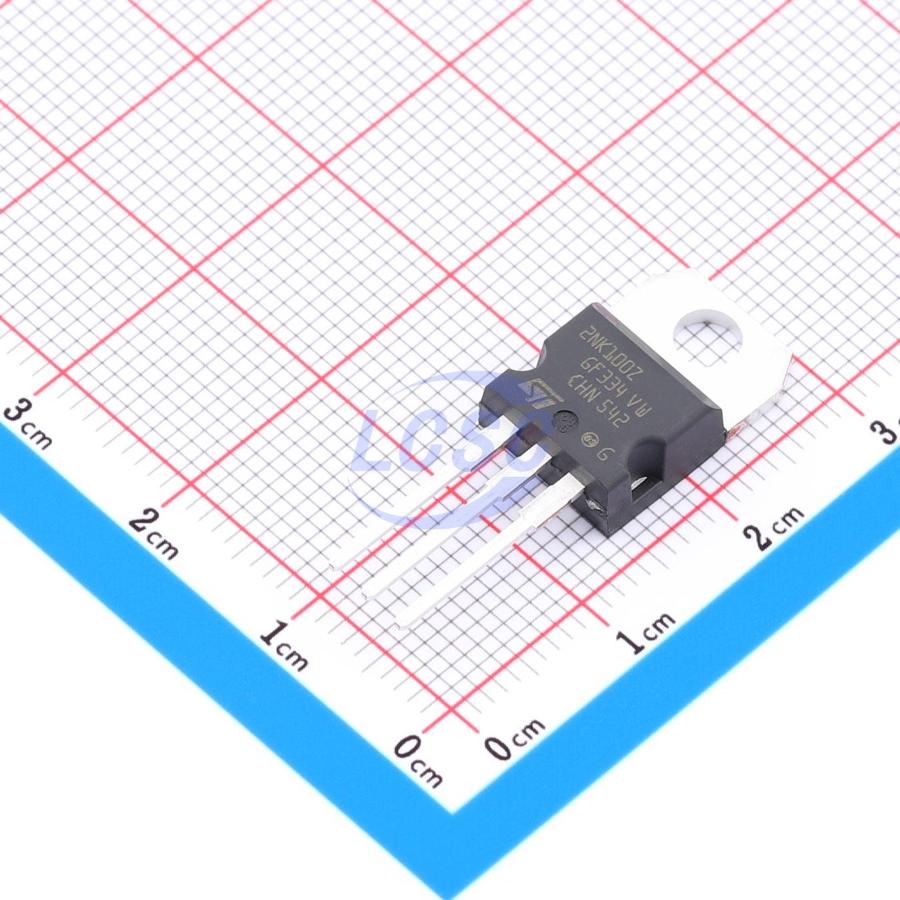

STP2NK100Z
70W 1kV 1.85A 8.5Ω@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs
TO-220-3RoHSActive
N-channel, Current: 1.85A, Voltage: 1000V
- Manufacturer
- ST
- Manufacturer part #
- STP2NK100Z
- Store part #
- C2965465
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2965465
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,040.55 | ₹1,040.55 |
| 10+ | ₹1,017.69 | ₹10,176.90 |
| 30+ | ₹1,002.68 | ₹30,080.40 |
| 100+ | ₹987.43 | ₹98,743.00 |
1 × ₹1,040.55
₹1,040.55
excl. GST
₹1,227.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
STP2NK100Z
₹1,040.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 53pF
- Ciss-Input Capacitance
- 499pF
- Pd - Power Dissipation
- 70W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 1.85A
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 8.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.235 g
Overview
These high-voltage devices are Zener-protected N-channel power MOSFETs developed using SuperMESH™ technology, an optimization of the well-established PowerMESH™ technology. In addition to significantly reducing on-resistance, these devices are designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Minimized gate charge
- Extremely low intrinsic capacitance
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP2NK90Z#C155656ST · TO-220 | ST | TO-220 | 3 | ₹224.06 · 3 in stock | View |
 | STP3N150#C2688563ST · TO-220 | ST | TO-220 | 1,000 | ₹501.40 · 1,000 in stock | View |
 | MS8N100FT#C5139247MASPOWER · TO-220 | MASPOWER | TO-220 | 54 | ₹147.01 · 54 in stock | View |
 | KNP41100A#C2896659KIA Semicon Tech · TO-220 | KIA Semicon Tech | TO-220 | 85 | ₹72.58 · 85 in stock | View |
 | MS10N100HCT0#C55042275MASPOWER · TO-220 | MASPOWER | TO-220 | 68 | ₹191.39 · 68 in stock | View |
