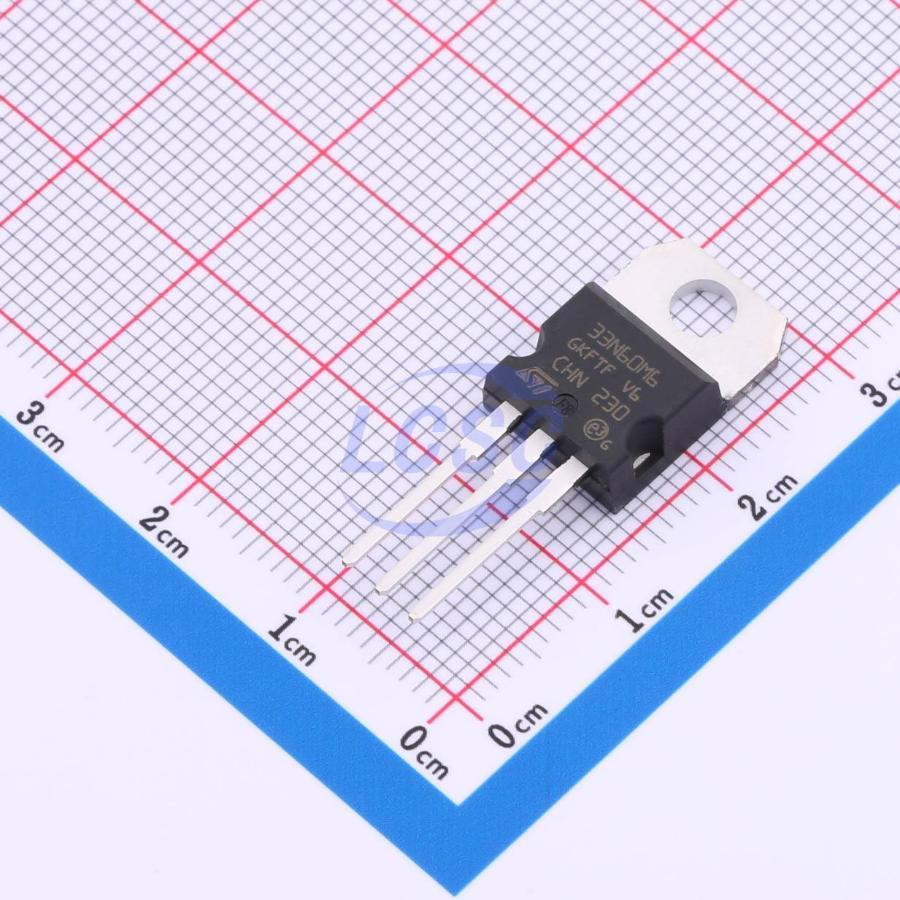

STP33N60M6
N-Channel 600V 25A 190W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 600V 25A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP33N60M6
- Store part #
- C5268765
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C5268765
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹813.41 | ₹813.41 |
| 10+ | ₹692.33 | ₹6,923.30 |
| 50+ | ₹618.49 | ₹30,924.50 |
| 100+ | ₹556.65 | ₹55,665.00 |
1 × ₹813.41
₹813.41
excl. GST
₹959.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP33N60M6
₹813.41 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 1.515nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 4.2pF
- RDS(on)
- 125mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.4nC@480V
- Gate Threshold Voltage (Vgs(th))
- 4.75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.024 g
Overview
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum end-application efficiency.
Applications
- Switching applications
- LLC converters
- Boost PFC converters
Key features
- Reduced switching losses
- Lower RDS(on) per area vs previous generation
- Low gate input resistance
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SiHP28N65EF-VB#C22357160VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹438.39 · 5 in stock | View |
 | STP33N60M2#C472618ST · TO-220 | ST | TO-220 | 30 | ₹612.71 · 30 in stock | View |
 | STP34NM60ND#C2971138ST · TO-220 | ST | TO-220 | 6 | ₹746.05 · 6 in stock | View |
 | IPP65R095C7-VB#C22357155VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹520.72 · 2 in stock | View |
 | STP50N65DM6-VB#C22357157VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹520.72 · 2 in stock | View |
