VBsemi ElecDatasheet (PDF)

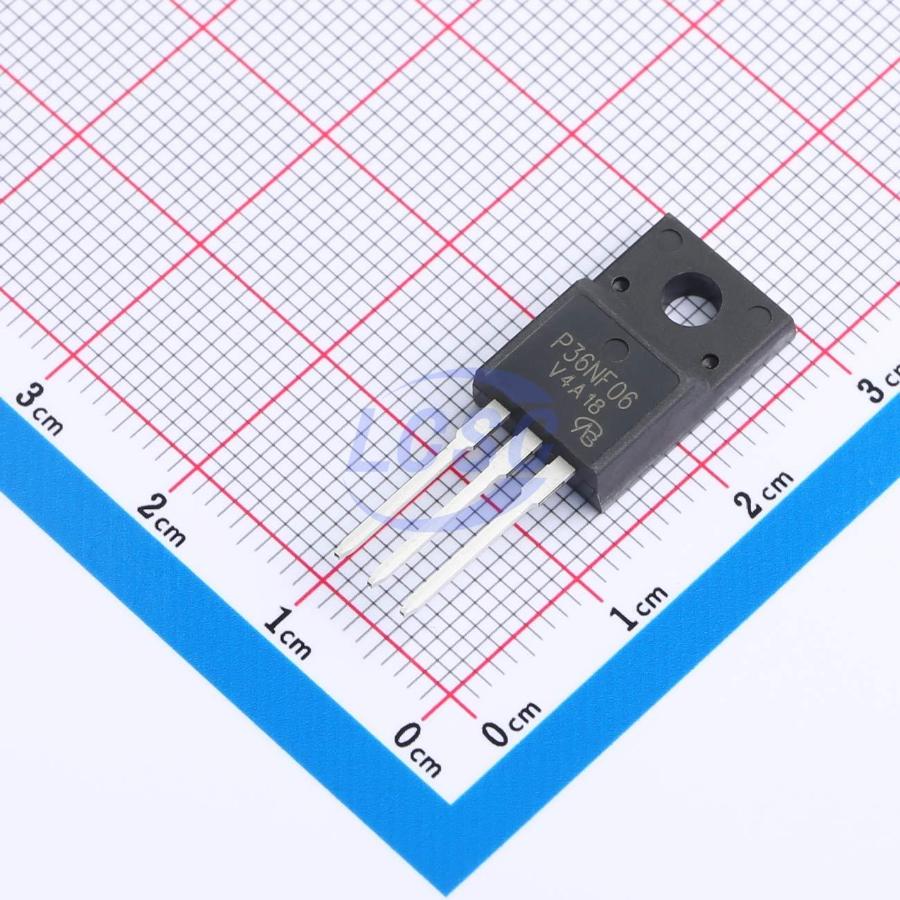

STP36NF06FP-VB
N-Channel 60V 45A 52W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 60V 45A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP36NF06FP-VB
- Store part #
- C20626311
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C20626311
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.00 | ₹91.00 |
| 10+ | ₹75.77 | ₹757.70 |
| 50+ | ₹58.57 | ₹2,928.50 |
| 100+ | ₹50.95 | ₹5,095.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹91.00
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP36NF06FP-VB
₹91.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 720pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 27mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.44 g
Overview
Applications
- High-frequency boost converter — LCD TV LED backlight
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kV_RMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLIZ44NPBF-VB#C19188115VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹79.49 · 4 in stock | View |
 | 2SK2986-VB#C19626779VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹86.92 · 50 in stock | View |
 | IRLIB4343PBF-VB#C19632132VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹78.56 · 10 in stock | View |
 | FQPF13N06L-VB#C19632226VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹75.62 · 5 in stock | View |
 | 2SK2311-VB#C20755440VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹78.56 · 20 in stock | View |
