STDatasheet (PDF)

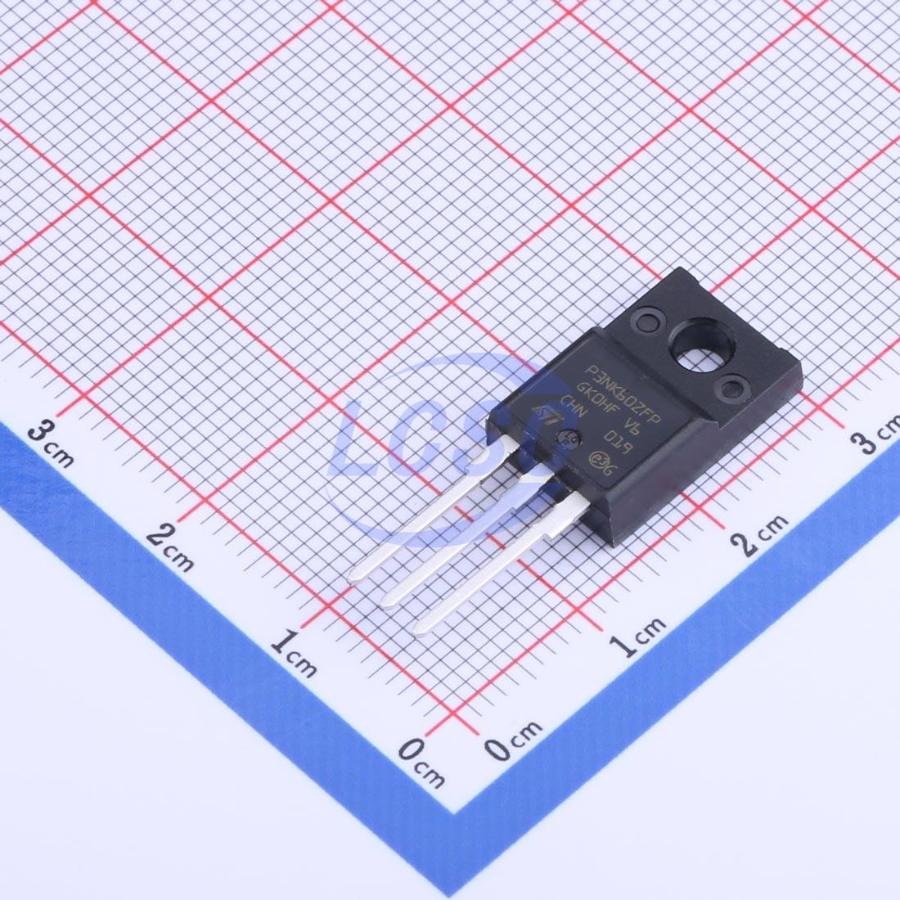

STP3NK60ZFP
N-Channel 600V 2.4A 20W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 600V 2.4A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STP3NK60ZFP
- Store part #
- C2688561
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C2688561
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.88 | ₹155.88 |
| 10+ | ₹130.33 | ₹1,303.30 |
| 50+ | ₹116.28 | ₹5,814.00 |
| 100+ | ₹100.30 | ₹10,030.00 |
| 500+ | ₹93.27 | ₹46,635.00 |
| 1,000+ | ₹90.08 | ₹90,080.00 |
1 × ₹155.88
₹155.88
excl. GST
₹183.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP3NK60ZFP
₹155.88 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 43pF
- Ciss-Input Capacitance
- 311pF
- Pd - Power Dissipation
- 20W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 2.4A
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11.8nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology, an optimization of the well-established PowerMESH™. In addition to a significant reduction in on-resistance, these devices are designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL5N100F#C6800593Slkor · TO-220F | Slkor | TO-220F | 10 | ₹117.79 · 10 in stock | View |
| STF3N80K5#C5268641ST · TO-220FP | ST | TO-220FP | 80 | ₹378.13 · 80 in stock | View | |
 | F4N60L#C5632444Jingdao Microelectronics · TO-220F-3L | Jingdao Microelectronics | TO-220F-3L | 30 | ₹31.67 · 30 in stock | View |
 | STF4N80K5#C377959ST · TO-220FP | ST | TO-220FP | 28 | ₹379.77 · 28 in stock | View |
 | MJF07N65#C17702004MIRACLE POWER · TO-220F | MIRACLE POWER | TO-220F | 69 | ₹61.19 · 69 in stock | View |
