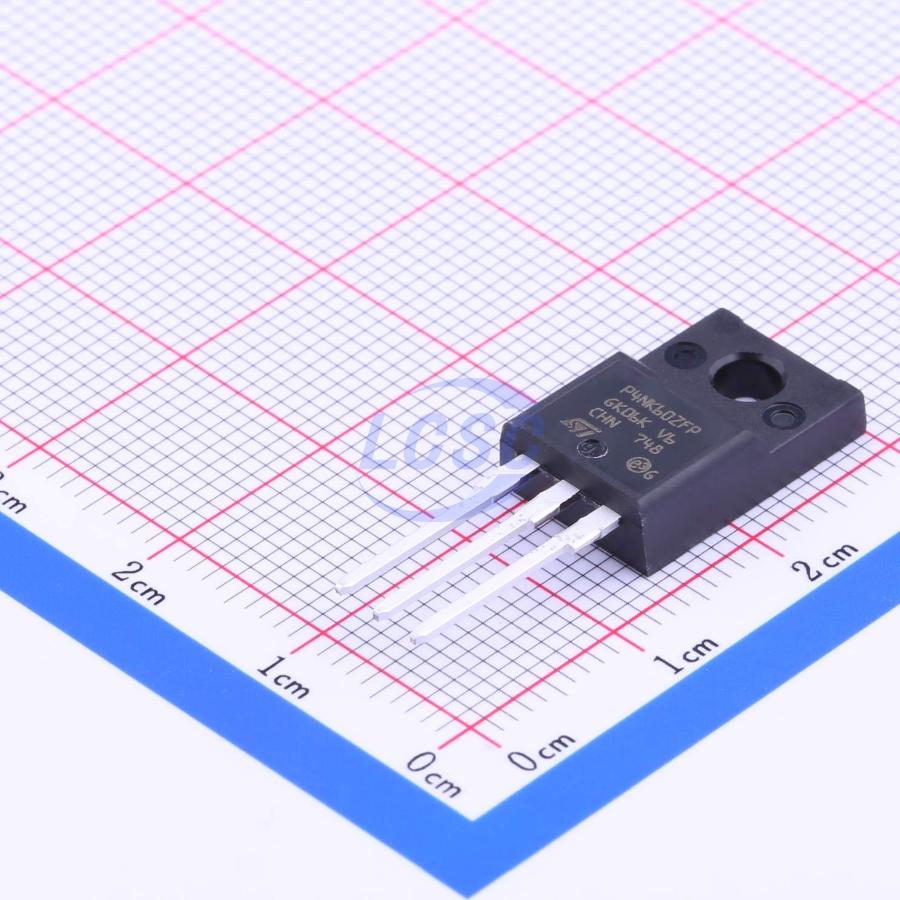

STP4NK60ZFP
N-Channel 600V 4A 25W Through Hole TO-220FP
TO-220FPROHS3 CompliantActive
MOSFET N-CH 600V 4A TO-220FP
- Manufacturer
- ST
- Manufacturer part #
- STP4NK60ZFP
- Store part #
- C110589
- Package / case
- TO-220FP
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C110589
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.44 | ₹93.44 |
| 10+ | ₹77.58 | ₹775.80 |
| 30+ | ₹70.85 | ₹2,125.50 |
| 100+ | ₹62.37 | ₹6,237.00 |
| 500+ | ₹58.68 | ₹29,340.00 |
| 1,000+ | ₹56.51 | ₹56,510.00 |
1 × ₹93.44
₹93.44
excl. GST
₹110.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP4NK60ZFP
₹93.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 67pF
- Ciss-Input Capacitance
- 510pF
- Pd - Power Dissipation
- 25W
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of ST's well established strip-based PowerMESH™ layout. In addition to a significant reduction in onresistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Very low intrinsic capacitances
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL4N65F#C251156Slkor · TO-220F-3 | Slkor | TO-220F-3 | 50 | ₹40.80 · 50 in stock | View |
 | STF7N105K5#C183259ST · TO-220FP | ST | TO-220FP | 7 | ₹275.33 · 7 in stock | View |
 | NDF04N60ZH#C152527onsemi · TO-220FP | onsemi | TO-220FP | 1 | ₹101.70 · 1 in stock | View |
 | SMF5N60#C570136HUAKE · TO-220F | HUAKE | TO-220F | 265 | ₹33.21 · 265 in stock | View |
 | SMT5N60#C570141HUAKE · TO-220F-3 | HUAKE | TO-220F-3 | 570 | ₹27.82 · 570 in stock | View |
