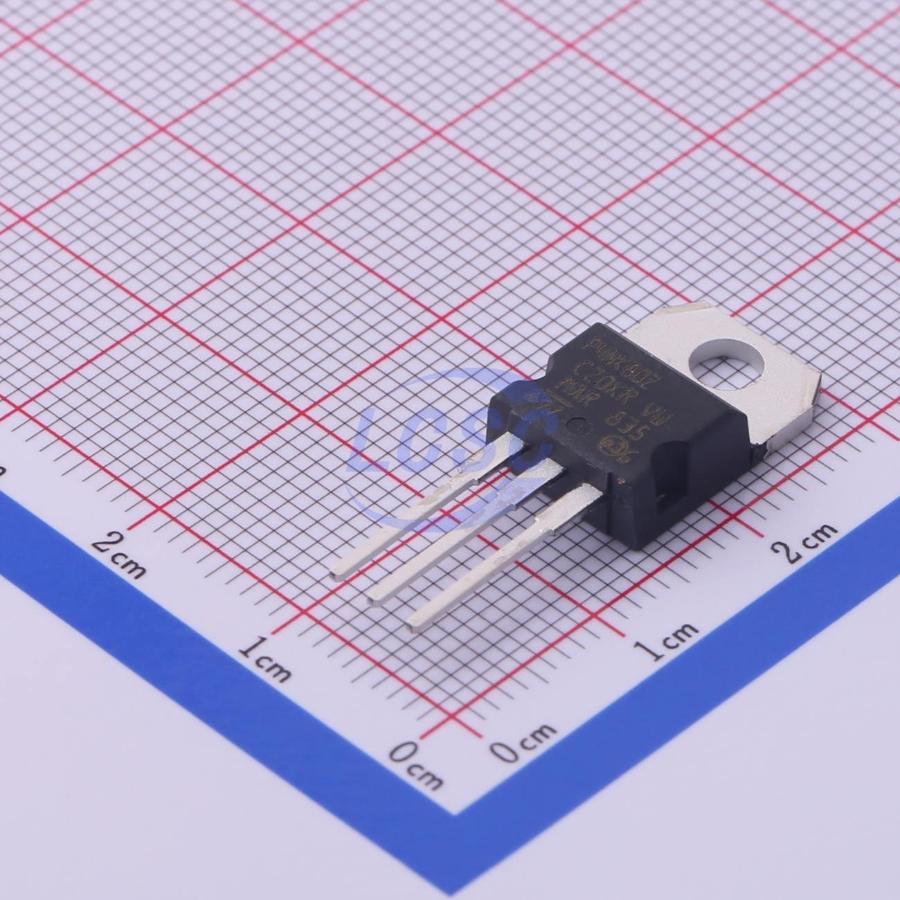

STP4NK80Z
N-Channel 800V 3A 80W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 800V 3A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP4NK80Z
- Store part #
- C411401
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C411401
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.65 | ₹201.65 |
| 10+ | ₹175.15 | ₹1,751.50 |
| 50+ | ₹160.59 | ₹8,029.50 |
| 100+ | ₹143.86 | ₹14,386.00 |
| 500+ | ₹136.69 | ₹68,345.00 |
| 1,000+ | ₹133.21 | ₹1,33,210.00 |
1 × ₹201.65
₹201.65
excl. GST
₹237.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP4NK80Z
₹201.65 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 67pF
- Ciss-Input Capacitance
- 575pF
- Pd - Power Dissipation
- 80W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 3.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.5nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.78 g
Overview
The SuperMESH series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh products.
Applications
- Switching application
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Gate charge minimized
- Very low intrinsic capacitances
- Very good manufacturing repeatibility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP3NK90Z#C283631ST · TO-220 | ST | TO-220 | 1,083 | ₹171.98 · 1,083 in stock | View |
 | FQP4N80(KTP)#C55337834KTP · TO-220 | KTP | TO-220 | 990 | ₹55.29 · 990 in stock | View |
 | 4N80L-TA3-T#C5157616UTC · TO-220 | UTC | TO-220 | 800 | ₹74.10 · 800 in stock | View |
 | MS8N90ICT0#C41417735MASPOWER · TO-220 | MASPOWER | TO-220 | 49 | ₹135.17 · 49 in stock | View |
 | SL8N100#C6800594Slkor · TO-220 | Slkor | TO-220 | 50 | ₹229.91 · 50 in stock | View |
