STDatasheet (PDF)

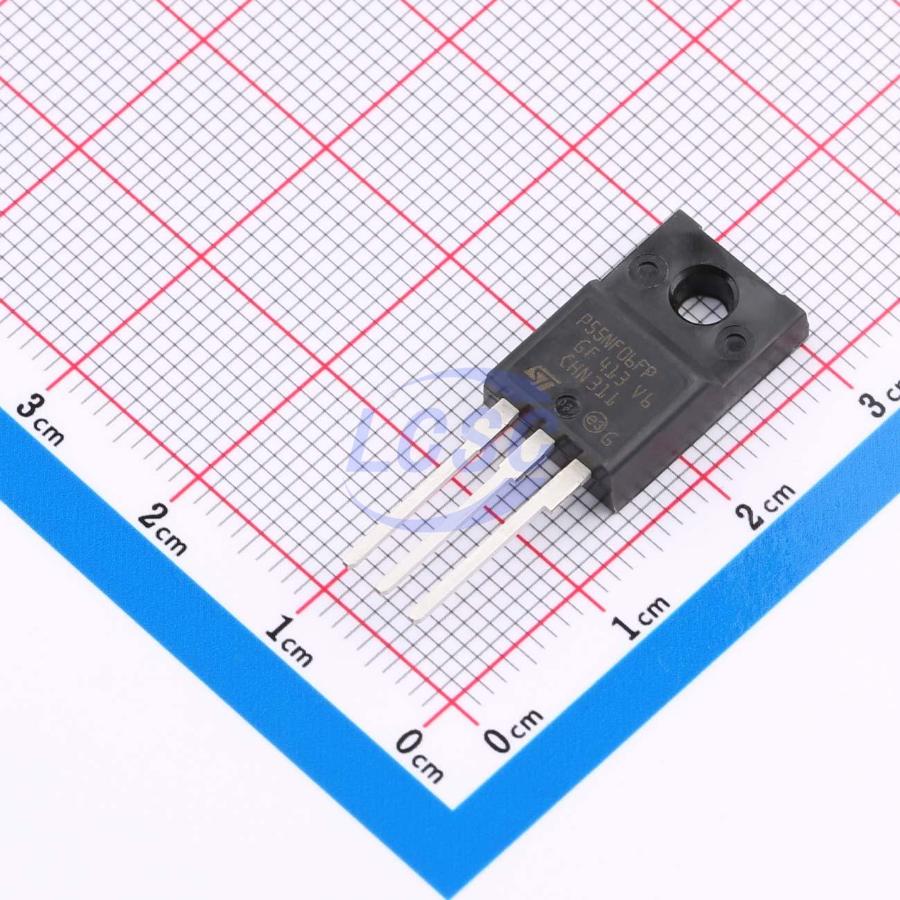

STP55NF06FP
N-Channel 60V 50A 30W Through Hole TO-220FP-3
TO-220FP-3ROHS3 CompliantActive
MOSFET N-CH 60V 50A TO-220FP-3
- Manufacturer
- ST
- Manufacturer part #
- STP55NF06FP
- Store part #
- C2688559
- Package / case
- TO-220FP-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
325 in stock
#C2688559
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.27 | ₹95.27 |
| 10+ | ₹84.04 | ₹840.40 |
| 30+ | ₹78.64 | ₹2,359.20 |
| 100+ | ₹73.02 | ₹7,302.00 |
| 500+ | ₹69.79 | ₹34,895.00 |
| 1,000+ | ₹68.06 | ₹68,060.00 |
1 × ₹95.27
₹95.27
excl. GST
₹112.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP55NF06FP
₹95.27 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 300pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 30W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.48 g
Overview
These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and computer applications, and applications with low gate charge driving requirements.
Applications
- Switching application
Key features
- Refer to soa for the max allowable current value on FP-type due to Rth value
- 100% avalanche tested
- Exceptional dv/dt capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT55NF06ASZ#C2874953HTCSEMI · TO-263-3 | HTCSEMI | TO-263-3 | 105 | ₹52.15 · 105 in stock | View |
 | VBM1102N#C480997VBsemi Elec · ITO-220AB-3 | VBsemi Elec | ITO-220AB-3 | 6 | ₹128.19 · 6 in stock | View |
 | IRF100B202#C148137Infineon · ITO-220AB-3 | Infineon | ITO-220AB-3 | 3,283 | ₹96.01 · 3,283 in stock | View |
 | FDPF55N06#C188509onsemi · TO-220F | onsemi | TO-220F | 5 | ₹314.52 · 5 in stock | View |
 | CMF012N10#C18255812Cmos · TO-220F | Cmos | TO-220F | 50 | ₹89.04 · 50 in stock | View |
