STDatasheet (PDF)

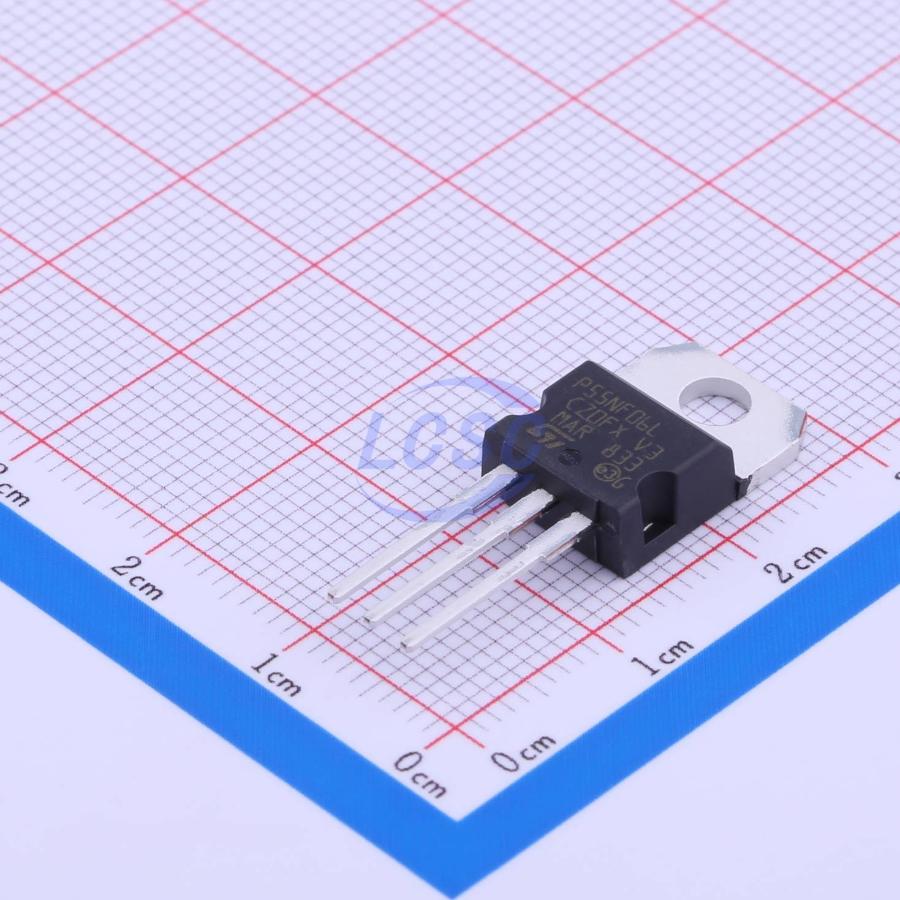

STP55NF06L
N-Channel 60V 55A 95W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 60V 55A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP55NF06L
- Store part #
- C77582
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C77582
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.50 | ₹171.50 |
| 10+ | ₹142.45 | ₹1,424.50 |
| 50+ | ₹127.92 | ₹6,396.00 |
| 100+ | ₹113.39 | ₹11,339.00 |
| 500+ | ₹104.94 | ₹52,470.00 |
| 1,200+ | ₹100.39 | ₹1,20,468.00 |
1 × ₹171.50
₹171.50
excl. GST
₹202.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP55NF06L
₹171.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 300pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 95W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 55A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 37nC@4.5V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Switching application
Key features
- Exceptional dv/dt capability
- 100% avalanche tested
- Application oriented characterization
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT55NF06ASZ#C2874953HTCSEMI · TO-263-3 | HTCSEMI | TO-263-3 | 105 | ₹52.15 · 105 in stock | View |
 | HSP60N06#C7543709HUASHUO · TO-220 | HUASHUO | TO-220 | 96 | ₹53.67 · 96 in stock | View |
 | MDDG10R08P#C49382861MDD(Microdiode Semiconductor) · TO-220C-3L | MDD(Microdiode Semiconductor) | TO-220C-3L | 148 | ₹68.31 · 148 in stock | View |
 | S70N10T#C53134298HL · TO-220 | HL | TO-220 | 350 | ₹49.43 · 350 in stock | View |
 | XRS70N12T#C49305567XNRUSEMI · TO-220 | XNRUSEMI | TO-220 | On request | ₹63.53 · 0 in stock | View |
