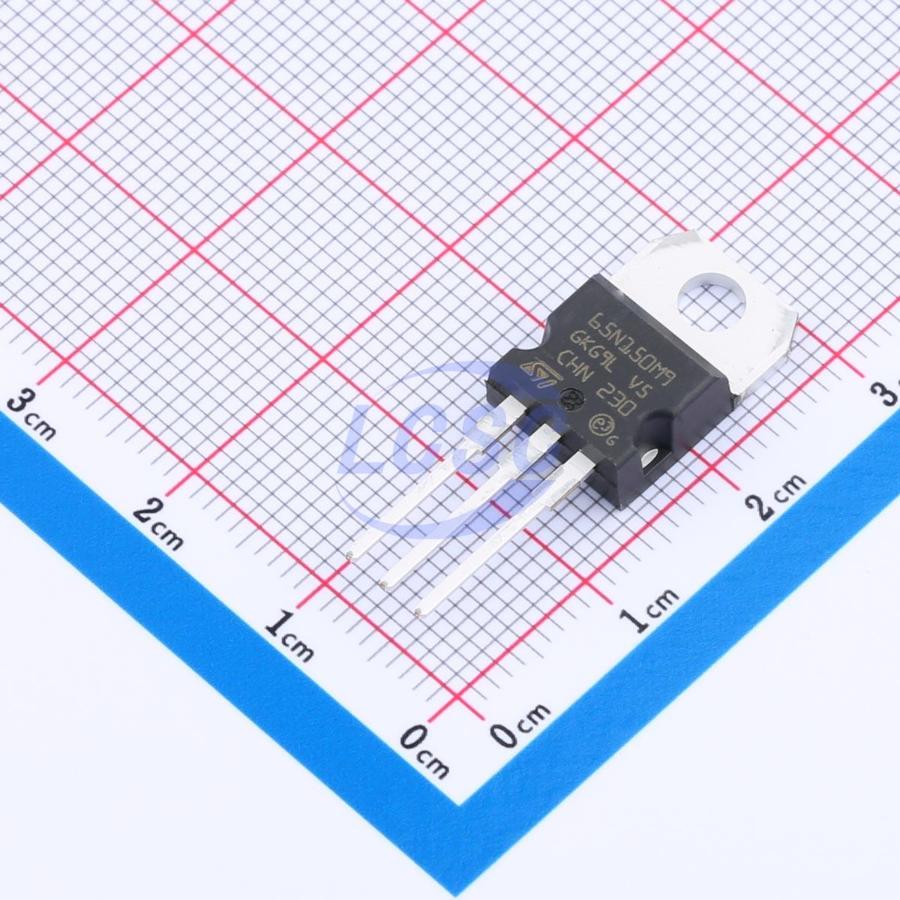

STP65N150M9
N-Channel 650V 20A 140W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 650V 20A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP65N150M9
- Store part #
- C5268777
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C5268777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹367.03 | ₹367.03 |
| 10+ | ₹358.33 | ₹3,583.30 |
| 30+ | ₹352.69 | ₹10,580.70 |
| 100+ | ₹347.02 | ₹34,702.00 |
1 × ₹367.03
₹367.03
excl. GST
₹433.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP65N150M9
₹367.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.24nF
- Pd - Power Dissipation
- 140W
- RDS(on)
- 128mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.919 g
Overview
This N-channel Power MOSFET is based on the most innovative super-junction MDmesh M9 technology, suitable for medium/high voltage MOSFETs featuring very low RDS(on) per area. The silicon based M9 technology benefits from a multi-drain manufacturing process which allows an enhanced device structure. The resulting product has one of the lower on-resistance and reduced gate charge values, among all silicon based fast switching super-junction Power MOSFETs, making it particularly suitable for applications that require superior power density and outstanding efficiency.
Applications
- High efficiency switching applications
Key features
- Worldwide best FOM RDS(on)*Qg among silicon-based devices
- Higher VDSS rating
- Higher dv/dt capability
- Excellent switching performance
- Easy to drive
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP20MF65TQ#C42404753Siliup · TO-220-3L | Siliup | TO-220-3L | 114 | ₹130.92 · 114 in stock | View |
 | WTM22N65AP#C48642345WPMtek · TO-220 | WPMtek | TO-220 | 27 | ₹184.06 · 27 in stock | View |
| IXTP24N65X2#C6280802Littelfuse · TO-220-3 | Littelfuse | TO-220-3 | 9 | ₹947.66 · 9 in stock | View | |
 | IPP65R190C6#C537233Infineon · TO-220 | Infineon | TO-220 | 5 | ₹319.21 · 5 in stock | View |
 | RS65R190T#C7465268REASUNOS · TO-220 | REASUNOS | TO-220 | 94 | ₹166.65 · 94 in stock | View |
