VBsemi ElecDatasheet (PDF)

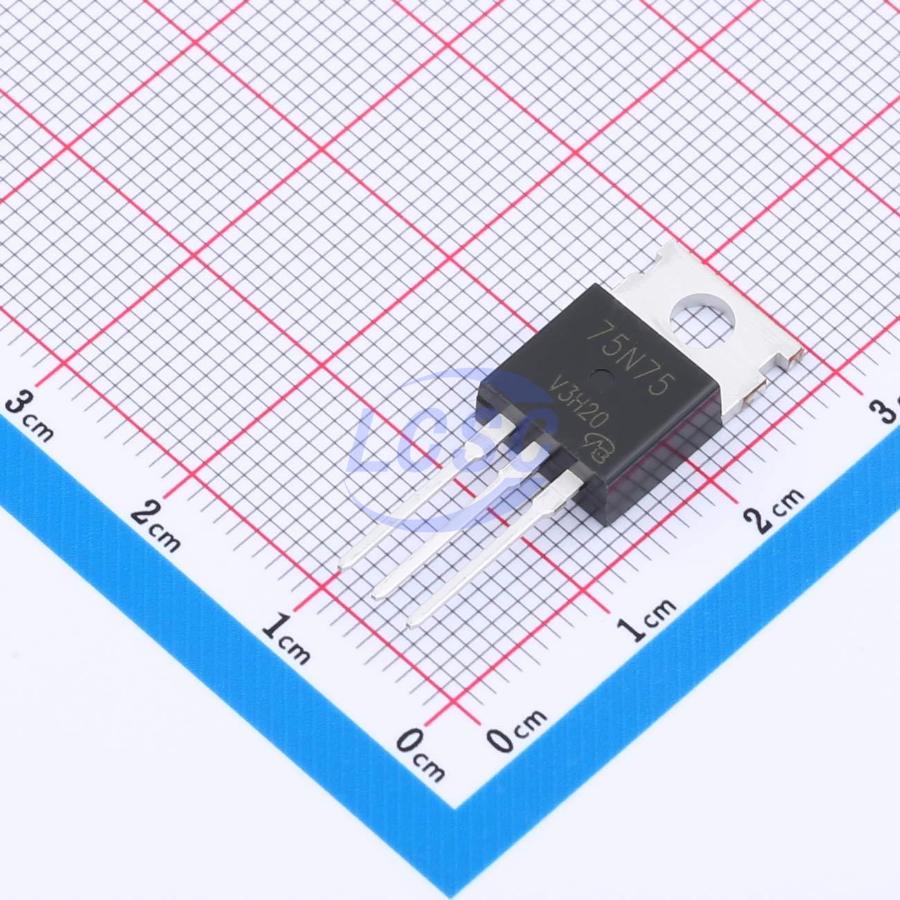

STP75N75F4-VB
N-Channel 80V 100A 180W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 80V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP75N75F4-VB
- Store part #
- C20417581
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C20417581
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.87 | ₹182.87 |
| 10+ | ₹157.40 | ₹1,574.00 |
| 50+ | ₹114.29 | ₹5,714.50 |
| 100+ | ₹98.40 | ₹9,840.00 |
| 500+ | ₹91.43 | ₹45,715.00 |
| 1,000+ | ₹88.18 | ₹88,180.00 |
1 × ₹182.87
₹182.87
excl. GST
₹215.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP75N75F4-VB
₹182.87 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.12nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.855nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 376pF
- RDS(on)
- 9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
Applications
- Primary Side Switching
- Synchronous Rectification
- DC/AC Inverters
- LED Backlighting
Key features
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP057N08N3 G-VB#C19626682VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 14 | ₹141.59 · 14 in stock | View |
 | 75N75-TA3-T-VB#C20755085VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹171.12 · 10 in stock | View |
 | AP94T07GP-HF-VB#C20755464VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹147.88 · 10 in stock | View |
 | STP75NE75-VB#C29779367VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹141.59 · 8 in stock | View |
 | ME75N80CD-VB#C19188087VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹147.88 · 10 in stock | View |
