STDatasheet (PDF)

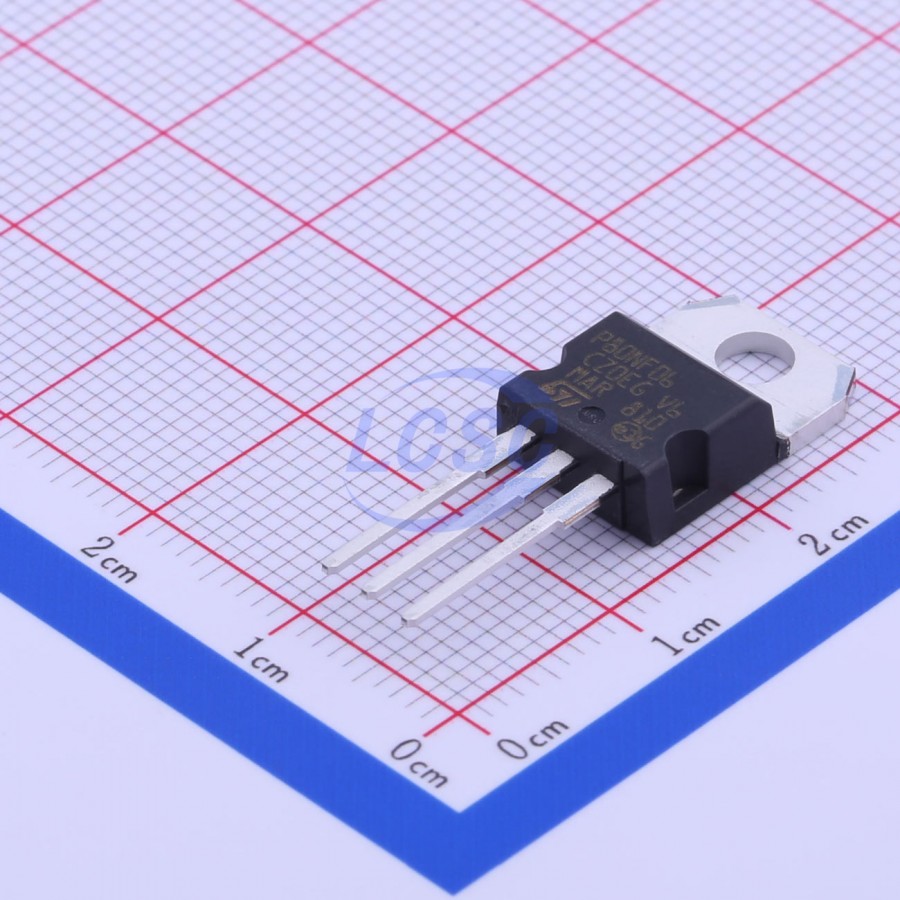

STP80NF06
N-Channel 60V 80A 300W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 60V 80A TO-220
- Manufacturer
- ST
- Manufacturer part #
- STP80NF06
- Store part #
- C283533
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C283533
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹508.53 | ₹508.53 |
| 10+ | ₹438.59 | ₹4,385.90 |
| 50+ | ₹397.11 | ₹19,855.50 |
| 100+ | ₹355.01 | ₹35,501.00 |
| 500+ | ₹335.75 | ₹1,67,875.00 |
| 1,000+ | ₹326.95 | ₹3,26,950.00 |
1 × ₹508.53
₹508.53
excl. GST
₹600.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP80NF06
₹508.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 800pF
- Ciss-Input Capacitance
- 3.85nF
- Pd - Power Dissipation
- 300W
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
This Power MOSFET is the latest development of unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Applications
- Switching application
Key features
- 100% avalanche tested
- Low threshold drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP75NF75#C13678ST · TO-220 | ST | TO-220 | 17,266 | ₹113.83 · 17,266 in stock | View |
 | IRF1407PBF#C2609Infineon · TO-220AB | Infineon | TO-220AB | 21,278 | ₹116.29 · 21,278 in stock | View |
 | STP80NF12#C457463ST · TO-220 | ST | TO-220 | 3 | ₹255.06 · 3 in stock | View |
 | MS210N085FTD#C41417586MASPOWER · TO-220 | MASPOWER | TO-220 | 20 | ₹136.60 · 20 in stock | View |
 | FDP3652-VB#C22389287VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹136.96 · 2 in stock | View |
