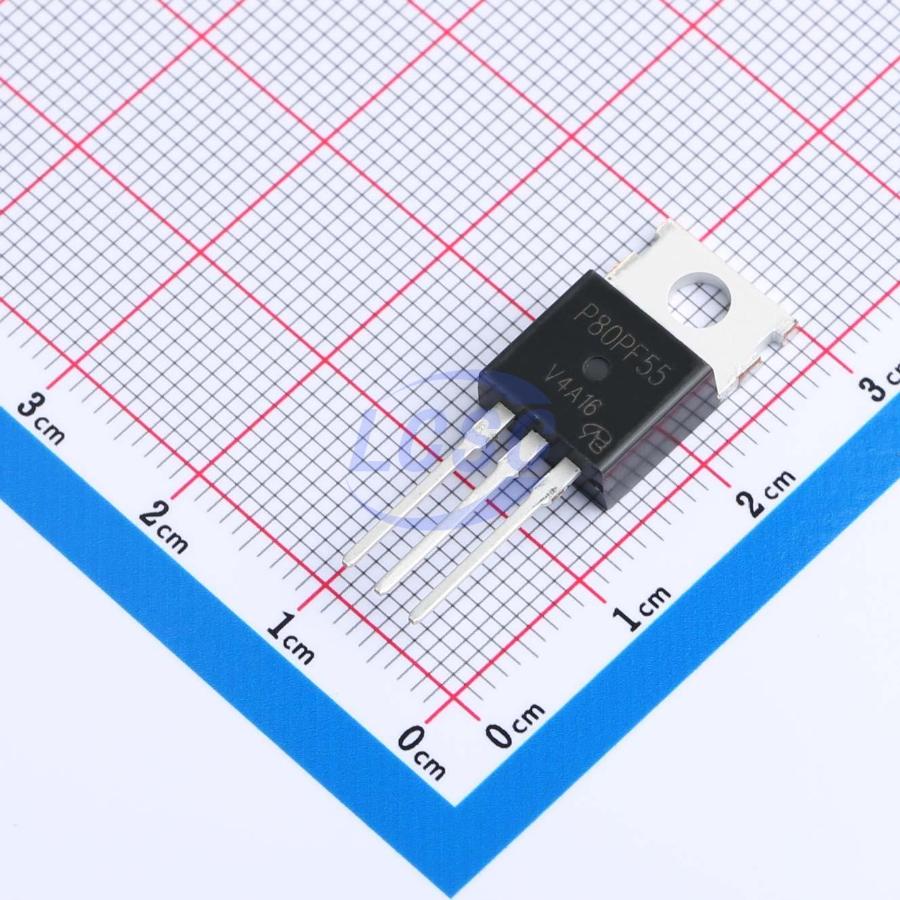

STP80PF55-VB
P-Channel 60V 90A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 90A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP80PF55-VB
- Store part #
- C20626343
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C20626343
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.61 | ₹216.61 |
| 10+ | ₹185.48 | ₹1,854.80 |
| 50+ | ₹139.99 | ₹6,999.50 |
| 100+ | ₹120.60 | ₹12,060.00 |
| 500+ | ₹112.12 | ₹56,060.00 |
| 1,000+ | ₹108.19 | ₹1,08,190.00 |
1 × ₹216.61
₹216.61
excl. GST
₹255.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP80PF55-VB
₹216.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 975pF
- Current - Continuous Drain(Id)
- 90A
- Ciss-Input Capacitance
- 9.2nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 760pF
- RDS(on)
- 7.4mΩ@10V;9.4mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.55 g
Overview
Applications
- DC-DC main switch
Key features
- Trench Power MOSFET
- RoHS compliant with Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AM90P06-08P-VB#C19626796VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹181.07 · 10 in stock | View |
 | SUP75P05-08-E3-VB#C19632251VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 23 | ₹176.58 · 23 in stock | View |
 | VBM2609#C42412596VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹209.64 · 8 in stock | View |
 | SUP90P06-09L-E3-VB#C19188119VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 27 | ₹167.20 · 27 in stock | View |
 | SQP90P06-07L_GE3-VB#C49363254VBsemi Elec · TO220 | VBsemi Elec | TO220 | 6 | ₹389.24 · 6 in stock | View |
