STDatasheet (PDF)

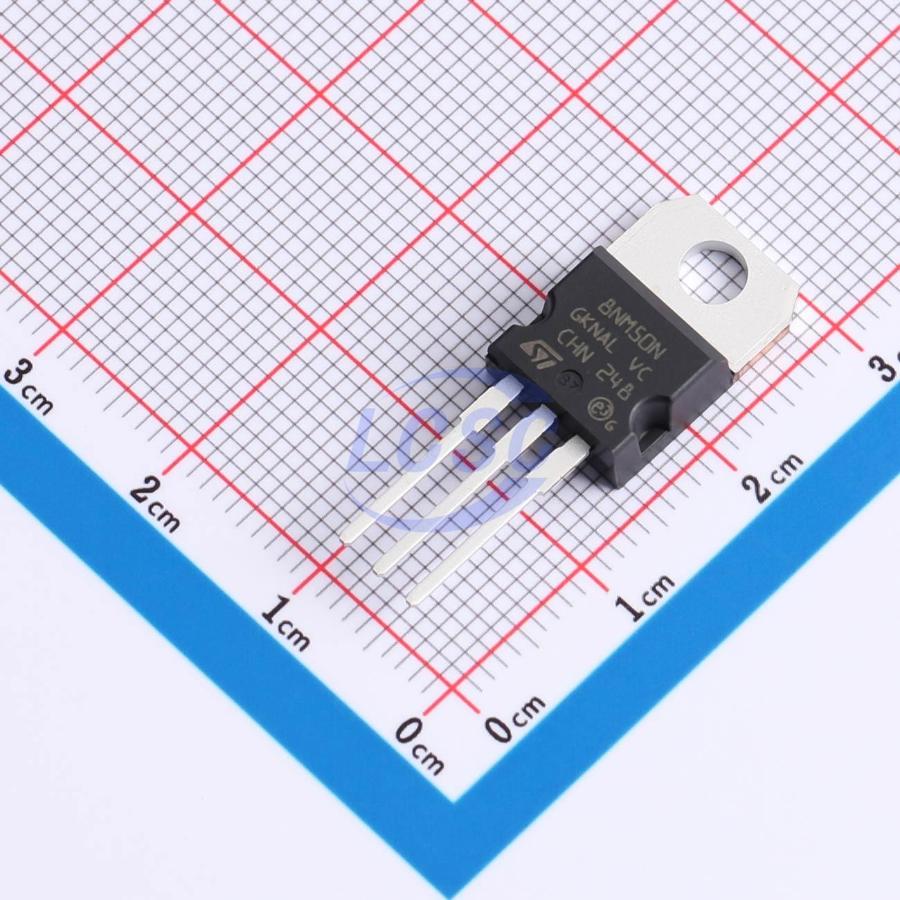

STP8NM50N
500V 5A 45W 790mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STP8NM50N
- Store part #
- C3290223
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C3290223
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹412.26 | ₹412.26 |
| 10+ | ₹406.24 | ₹4,062.40 |
| 30+ | ₹402.15 | ₹12,064.50 |
| 100+ | ₹398.08 | ₹39,808.00 |
1 × ₹412.26
₹412.26
excl. GST
₹486.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP8NM50N
₹412.26 for 1 + GST
Specifications
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 33pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 364pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 1.2pF
- RDS(on)
- 790mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.012 g
Overview
These devices are N-channel power MOSFETs developed using the second-generation MDmesh™ technology. These innovative power MOSFETs combine a vertical structure with the company's strip layout to achieve extremely low on-resistance and gate charge. As a result, they are well suited for the most demanding high-efficiency converters.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Low input capacitance and gate charge
- Low gate input resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK10A60D(STA4,X,S)#C2848495TOSHIBA · TO-220 | TOSHIBA | TO-220 | 6,570 | ₹101.88 · 6,570 in stock | View |
 | IPP80R900P7XKSA1#C3278798Infineon · TO-220-3 | Infineon | TO-220-3 | 2 | ₹499.01 · 2 in stock | View |
 | TK11A65D(STA4,X,M)#C396042TOSHIBA · TO-220 | TOSHIBA | TO-220 | 2,441 | ₹103.41 · 2,441 in stock | View |
 | NPS8N50C#C41784107NH · TO-220C | NH | TO-220C | 35 | ₹45.51 · 35 in stock | View |
 | SVF840F#C601613Hangzhou Silan Microelectronics · TO-220 | Hangzhou Silan Microelectronics | TO-220 | 260 | ₹55.16 · 260 in stock | View |
