VBsemi ElecDatasheet (PDF)

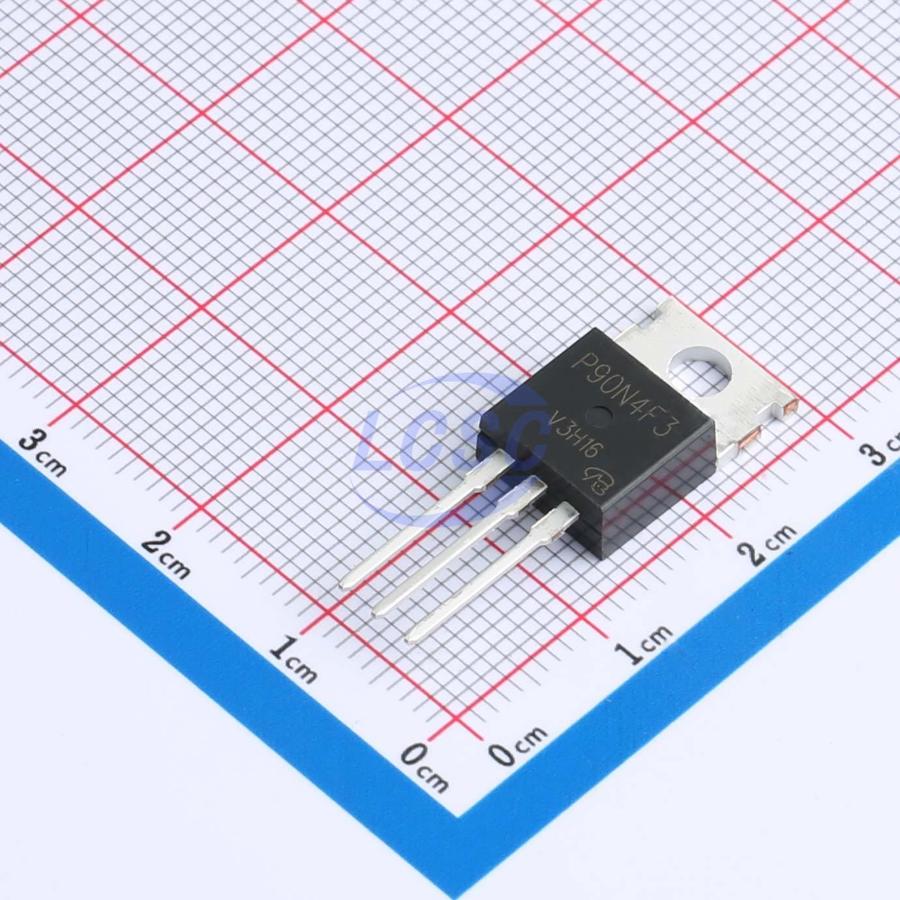

STP90N4F3-VB
N-Channel 40V 110A Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 40V 110A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP90N4F3-VB
- Store part #
- C7569066
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7569066
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.83 | ₹115.83 |
| 10+ | ₹94.14 | ₹941.40 |
| 50+ | ₹83.31 | ₹4,165.50 |
| 100+ | ₹72.47 | ₹7,247.00 |
| 500+ | ₹66.10 | ₹33,050.00 |
| 1,000+ | ₹62.91 | ₹62,910.00 |
1 × ₹115.83
₹115.83
excl. GST
₹136.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP90N4F3-VB
₹115.83 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 750pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 2.9nF
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU40120R-VB#C18212468VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹134.30 · 20 in stock | View |
 | IRF2804-VB#C18794964VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 17 | ₹115.83 · 17 in stock | View |
 | AM90N06-03P-VB#C19190255VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹115.83 · 15 in stock | View |
 | AUIRF4104-VB#C19711196VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹110.07 · 10 in stock | View |
 | PSMN2R8-40PS-VB#C19711202VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹114.48 · 10 in stock | View |
