VBsemi ElecDatasheet (PDF)

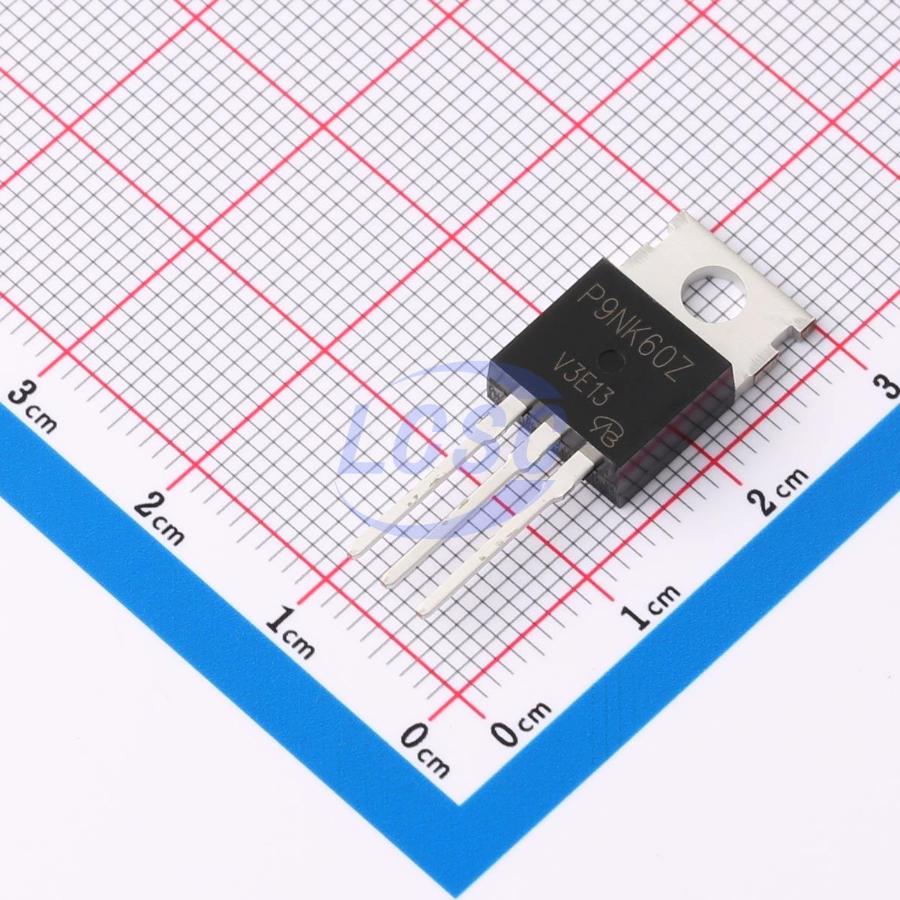

STP9NK60ZFD-VB
N-Channel 650V 8A 106W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 8A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP9NK60ZFD-VB
- Store part #
- C7494584
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C7494584
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.77 | ₹136.77 |
| 10+ | ₹111.22 | ₹1,112.20 |
| 50+ | ₹98.44 | ₹4,922.00 |
| 100+ | ₹85.66 | ₹8,566.00 |
| 500+ | ₹78.12 | ₹39,060.00 |
| 1,000+ | ₹74.15 | ₹74,150.00 |
1 × ₹136.77
₹136.77
excl. GST
₹161.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP9NK60ZFD-VB
₹136.77 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 106W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 840mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.716 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQP7N65C-VB#C54177069VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹145.42 · 5 in stock | View |
 | SDP10N06-VB#C18795006VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 18 | ₹137.17 · 18 in stock | View |
 | IRFB9N65APBF-VB#C47994016VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹167.92 · 2 in stock | View |
 | 2SK3115-VB#C47994037VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹148.64 · 5 in stock | View |
 | STP9N60M2-VB#C18212539VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 19 | ₹143.45 · 19 in stock | View |
