STDatasheet (PDF)

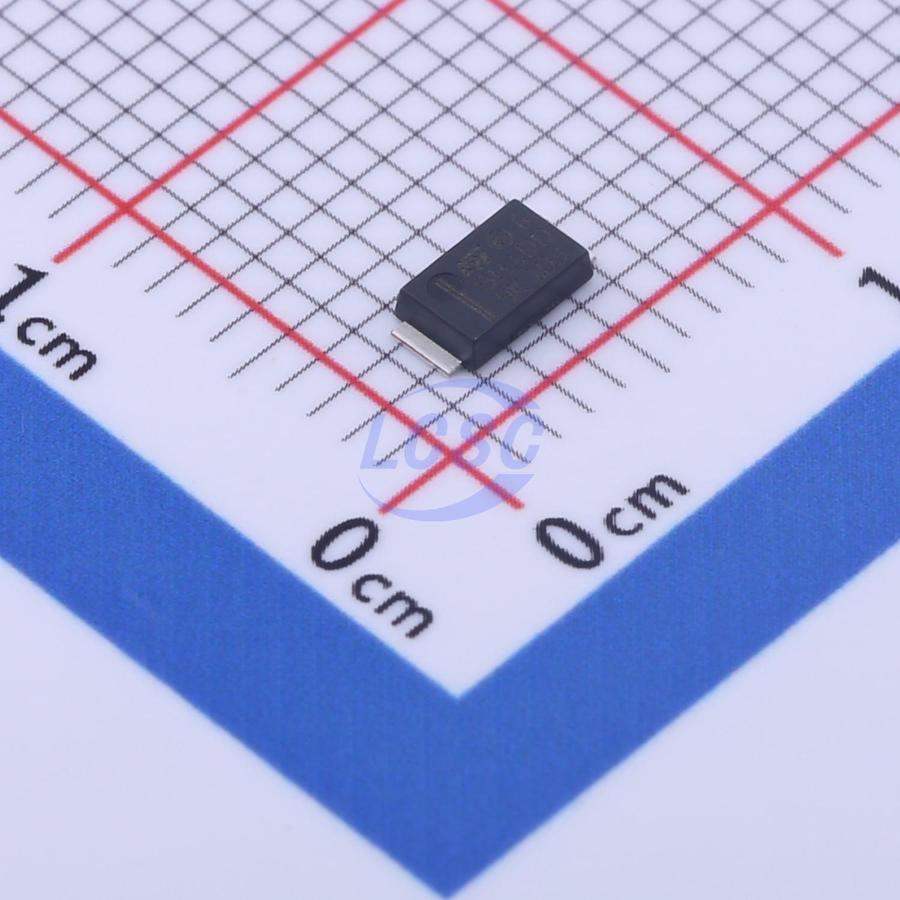

STPS5H100AF
Diode Independent 100V 5A Surface Mount SOD-128-2
SOD-128-2ROHS3 CompliantActive
DIODE SCHOTTKY 100V SOD-128-2
- Manufacturer
- ST
- Manufacturer part #
- STPS5H100AF
- Store part #
- C2802050
- Package / case
- SOD-128-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C2802050
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.19 | ₹85.19 |
| 10+ | ₹68.68 | ₹686.80 |
| 30+ | ₹60.42 | ₹1,812.60 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹85.19
₹85.19
excl. GST
₹100.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STPS5H100AF
₹85.19 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 760mV@5A
- Reverse Leakage Current (Ir)
- 3.5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 130A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
This high-voltage Schottky barrier rectifier in a SOD128Flat package is designed for high-frequency miniature switching mode power supplies and on-board DC-DC converters.
Applications
- High-frequency miniature switch-mode power supplies
- On-board DC-DC converters
Key features
- Negligible switching losses
- High junction temperature capability
- Low leakage current
- Excellent balance between leakage current and forward voltage drop
- Avalanche characteristics specified
- ECOPACK®-compliant components
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS5H100AFY#C2969782ST · SOD-128 | ST | SOD-128 | 283 | ₹90.82 · 283 in stock | View |
 | SS510F#C47117569TECH PUBLIC · SMAF | TECH PUBLIC | SMAF | 3,640 | ₹5.49 · 3,640 in stock | View |
 | RB088LAM100TFTR#C962660ROHM · SOD-128 | ROHM | SOD-128 | 8,605 | ₹52.23 · 8,605 in stock | View |
 | RB088LAM150TFTR#C518961ROHM · SOD-128 | ROHM | SOD-128 | 5,400 | ₹34.78 · 5,400 in stock | View |
 | STPST5H100AFY#C19723927ST · SOD-128F | ST | SOD-128F | 109 | ₹109.49 · 109 in stock | View |
