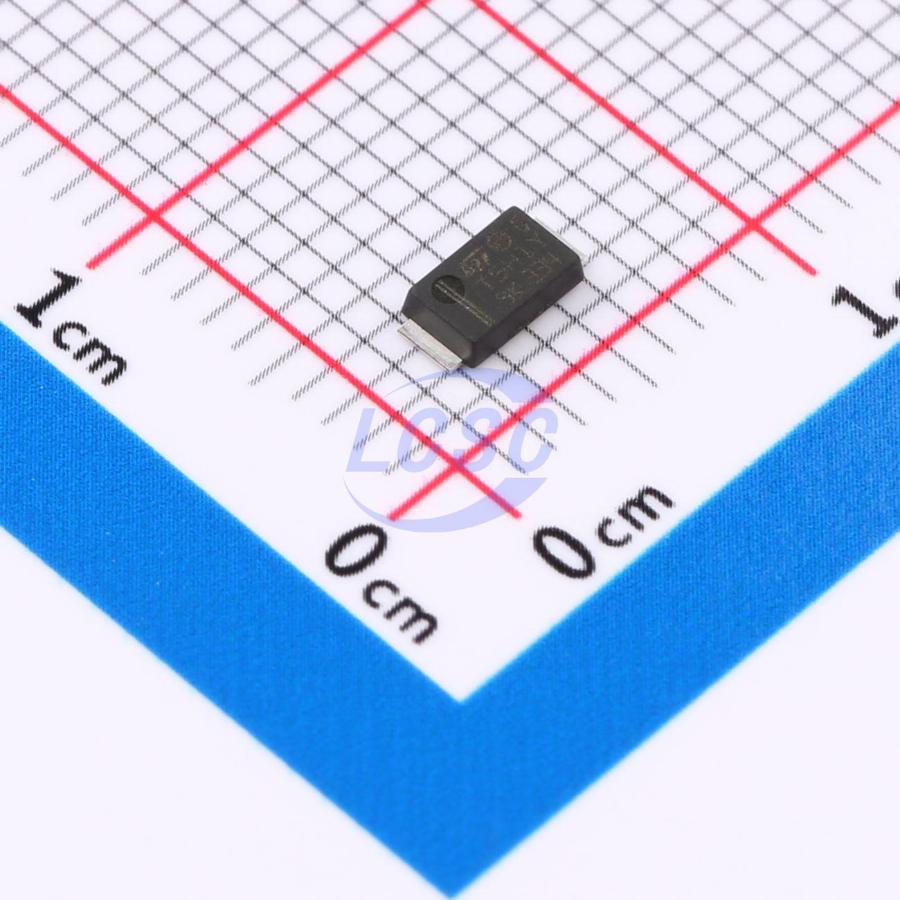

STPST5H100AFY
1 Independent 100V 680mV@5A 5A SOD-128F Single Diodes
DIODE SCHOTTKY 100V SOD-128F
- Manufacturer
- ST
- Manufacturer part #
- STPST5H100AFY
- Store part #
- C19723927
- Package / case
- SOD-128F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
109 in stock
#C19723927
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.49 | ₹109.49 |
| 10+ | ₹87.82 | ₹878.20 |
| 30+ | ₹76.97 | ₹2,309.10 |
| 100+ | ₹66.14 | ₹6,614.00 |
| 500+ | ₹59.85 | ₹29,925.00 |
| 1,000+ | ₹56.60 | ₹56,600.00 |
1 × ₹109.49
₹109.49
excl. GST
₹129.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STPST5H100AFY
₹109.49 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - Forward(Vf@If)
- 680mV@5A
- Reverse Leakage Current (Ir)
- 11.5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
This 5 A, 100 V rectifier, based on STMicroelectronics' trench technology, achieves the best-in-class V_F/I_R trade-off. Available in a flat, space-saving package, this automotive-grade trench device is suited for high-frequency compact switching mode power supplies such as automotive, DC/DC converters, or ECU power supplies. It is also suitable for freewheeling, OR-ing, or reverse polarity protection applications.
Applications
- Automotive LED lighting
- Flyback topology
- ECU power supply
Key features
- AEC-Q101 compliant
- PPAP capable
- Low forward voltage drop
- Low reverse recovery charge, reducing conduction, reverse, and switching losses
- 100% avalanche tested in production
- Operating junction temperature range: -40°C ~ +175°C
- Flat package
- ECOPACK2 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS5H100AFY#C2969782ST · SOD-128 | ST | SOD-128 | 283 | ₹90.82 · 283 in stock | View |
 | YQ5LAM10ETR#C25737936ROHM · SOD-128 | ROHM | SOD-128 | 161 | ₹49.11 · 161 in stock | View |
 | STPS5H100AF#C2802050ST · SOD-128-2 | ST | SOD-128-2 | 34 | ₹85.19 · 34 in stock | View |
 | RB088LAM100TFTR#C962660ROHM · SOD-128 | ROHM | SOD-128 | 8,605 | ₹52.23 · 8,605 in stock | View |
 | RB088LAM150TFTR#C518961ROHM · SOD-128 | ROHM | SOD-128 | 5,400 | ₹34.78 · 5,400 in stock | View |
