STDatasheet (PDF)

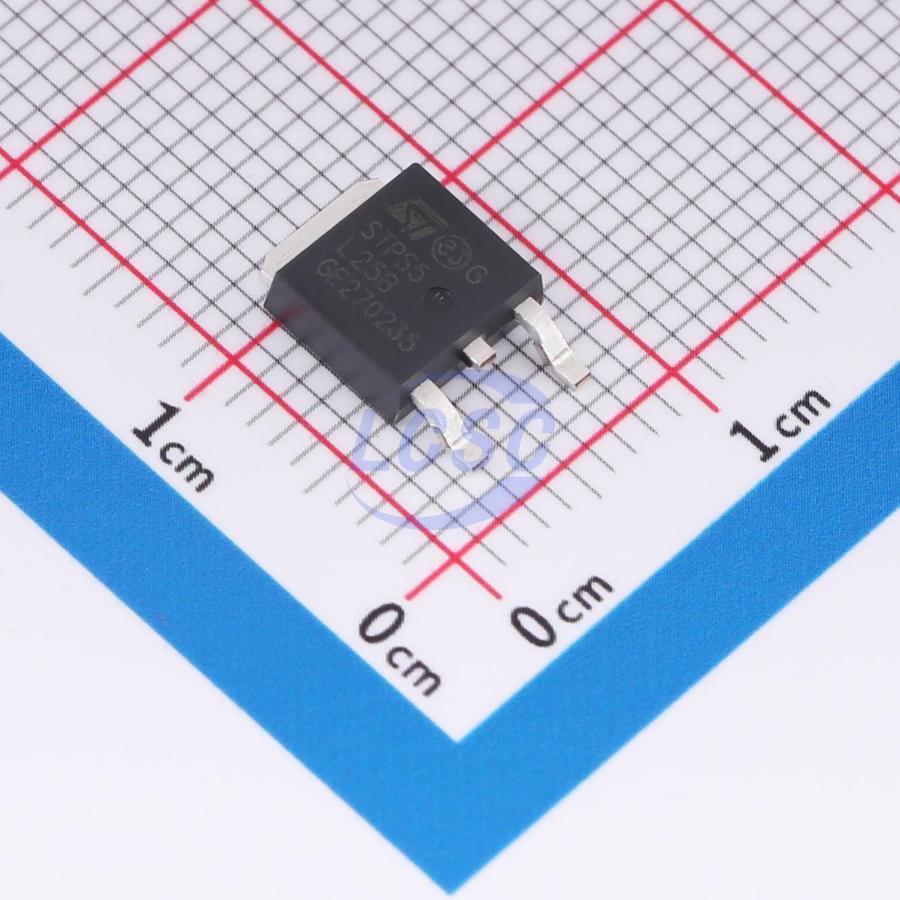

STPS5L25B-TR
1 Independent 25V 470mV@5A 5A DPAK Single Diodes RoHS
DPAKROHS3 CompliantActive
DIODE SCHOTTKY 25V DPAK
- Manufacturer
- ST
- Manufacturer part #
- STPS5L25B-TR
- Store part #
- C172489
- Package / case
- DPAK
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
106 in stock
#C172489
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.96 | ₹194.96 |
| 10+ | ₹169.38 | ₹1,693.80 |
| 30+ | ₹155.41 | ₹4,662.30 |
| 100+ | ₹139.72 | ₹13,972.00 |
| 500+ | ₹132.62 | ₹66,310.00 |
| 1,000+ | ₹129.40 | ₹1,29,400.00 |
1 × ₹194.96
₹194.96
excl. GST
₹230.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STPS5L25B-TR
₹194.96 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 25V
- Voltage - Forward(Vf@If)
- 470mV@5A
- Reverse Leakage Current (Ir)
- 350uA@25V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.385 g
Overview
Single Schottky rectifier in DPAK package, designed for use as a rectifier on the secondary side of 3.3V switching mode power supply units.
Applications
- Switch-mode power supplies
- High-frequency DC-DC converters
Key features
- Ultra-low forward voltage drop, reducing power dissipation and heat dissipation requirements
- Optimized conduction/reverse loss trade-off for high efficiency in applications
- High-power SMT miniature package
- Avalanche-rated
- ECOPACK®2 compatible component, DPAK available on request
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRD835LT4G#C28423onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 2,264 | ₹68.66 · 2,264 in stock | View |
 | STPS8L30B-TR#C172491ST · DPAK | ST | DPAK | 1,848 | ₹56.17 · 1,848 in stock | View |
 | VS-50WQ04FN-M3#C144982VISHAY · TO-252AA(DPAK) | VISHAY | TO-252AA(DPAK) | 501 | ₹176.20 · 501 in stock | View |
 | MBRD835LT4G-JSM#C18195213JSMSEMI · TO-252 | JSMSEMI | TO-252 | 695 | ₹23.59 · 695 in stock | View |
 | MBRD835D#C5155452Slkor · TO-252 | Slkor | TO-252 | 380 | ₹52.66 · 380 in stock | View |
