STDatasheet (PDF)

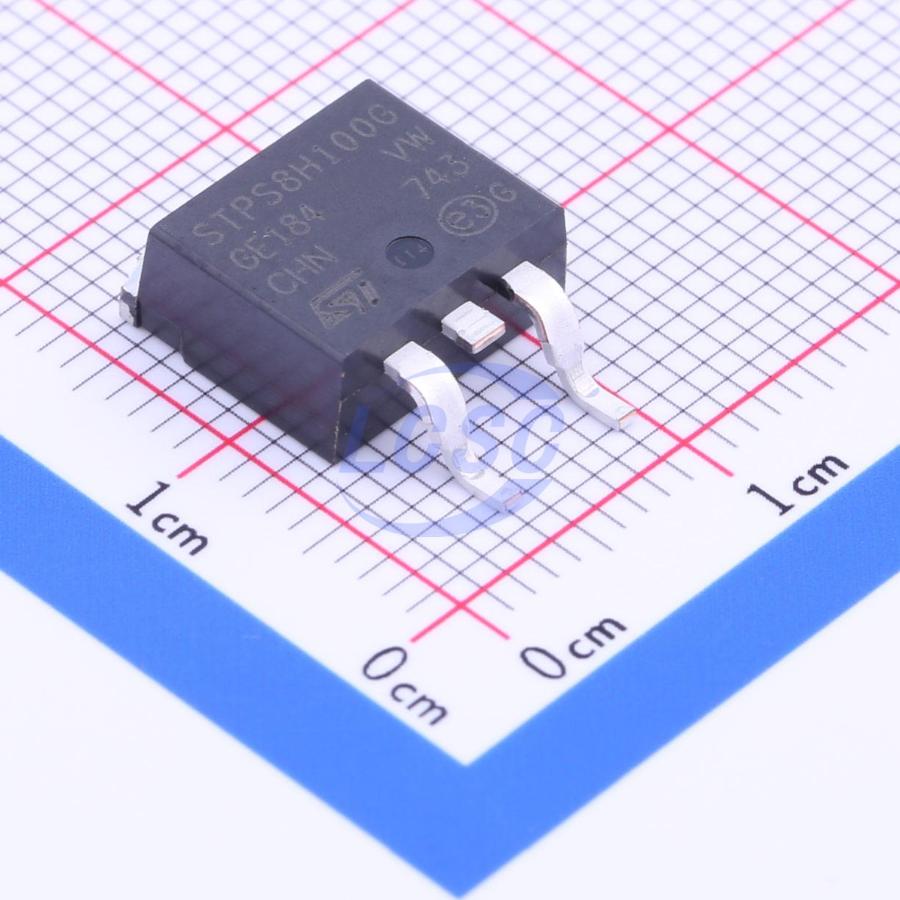

STPS8H100G-TR
Diode 100V 8A Surface Mount TO-263-2
TO-263-2ROHS3 CompliantActive
DIODE SCHOTTKY 100V TO-263-2
- Manufacturer
- ST
- Manufacturer part #
- STPS8H100G-TR
- Store part #
- C221484
- Package / case
- TO-263-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C221484
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.09 | ₹94.09 |
| 10+ | ₹75.13 | ₹751.30 |
| 30+ | ₹65.78 | ₹1,973.40 |
| 100+ | ₹56.41 | ₹5,641.00 |
| 500+ | ₹50.96 | ₹25,480.00 |
| 1,000+ | ₹47.92 | ₹47,920.00 |
1 × ₹94.09
₹94.09
excl. GST
₹111.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
STPS8H100G-TR
₹94.09 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 710mV@8A
- Reverse Leakage Current (Ir)
- 4.5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 250A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters.
Applications
- High-frequency compact switch-mode power supplies
- Adapters
- On-board DC-DC converters
Key features
- Negligible switching losses
- High junction temperature capability
- Low leakage current
- Good trade off between leakage current and forward voltage drop
- Insulated package: TO-220FPAC, insulating voltage = 2000 VRMS sine
- Avalanche capability specified
- ECOPACK®2 compliant component for D2PAK on demand
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRB8H100T4G#C152511onsemi · TO-263-2 | onsemi | TO-263-2 | 11 | ₹239.37 · 11 in stock | View |
 | VB30100S-E3/8W#C2983560VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 735 | ₹231.96 · 735 in stock | View |
 | VS-8TQ100S-M3#C6024691VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 89 | ₹158.96 · 89 in stock | View |
 | STPS20M100SG-TR#C969989ST · D2PAK | ST | D2PAK | 450 | ₹119.40 · 450 in stock | View |
 | MBRB10100-E3/8W#C3009869VISHAY · TO-263AB(D2PAK) | VISHAY | TO-263AB(D2PAK) | 244 | ₹155.80 · 244 in stock | View |
