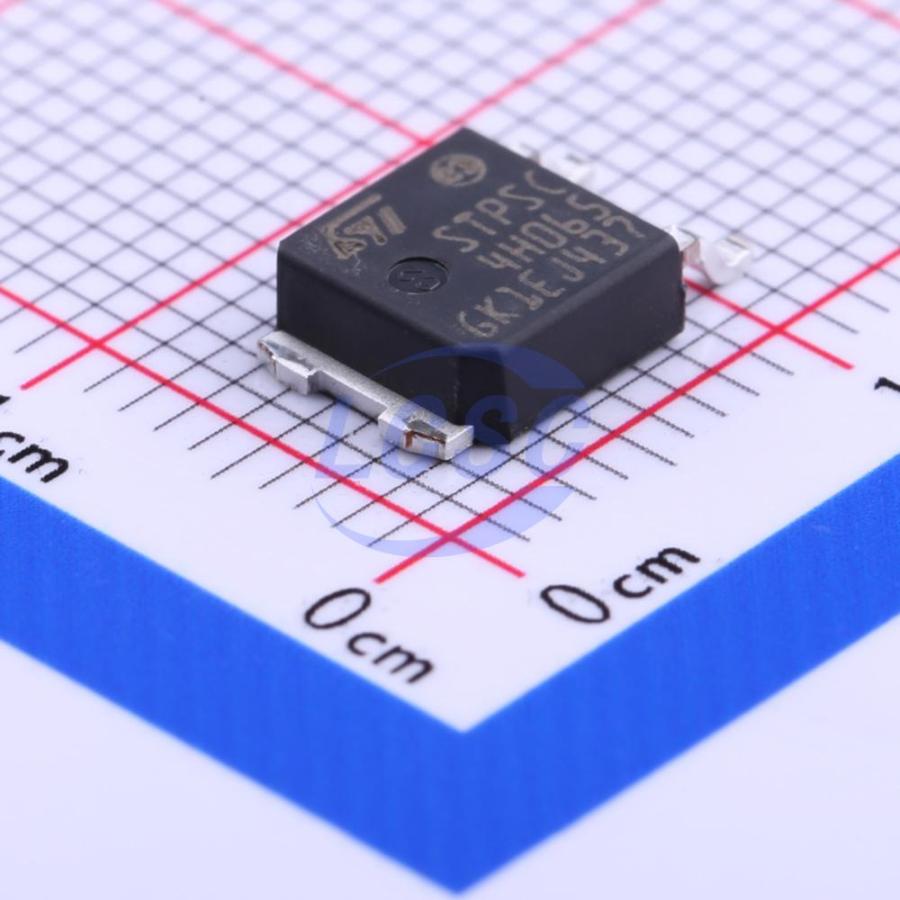

STPSC4H065B-TR
1 Independent 650V 1.75V@4A 4A TO-252(DPAK) Single Diodes RoHS
650 V power Schottky silicon carbide diode
- Manufacturer
- ST
- Manufacturer part #
- STPSC4H065B-TR
- Store part #
- C191032
- Package / case
- TO-252(DPAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C191032
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹311.76 | ₹311.76 |
| 10+ | ₹262.67 | ₹2,626.70 |
| 30+ | ₹232.03 | ₹6,960.90 |
| 100+ | ₹200.75 | ₹20,075.00 |
| 500+ | ₹186.41 | ₹93,205.00 |
| 1,000+ | ₹180.32 | ₹1,80,320.00 |
1 × ₹311.76
₹311.76
excl. GST
₹367.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STPSC4H065B-TR
₹311.76 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.75V@4A
- Reverse Leakage Current (Ir)
- 40uA@650V
- Non-Repetitive Peak Forward Surge Current
- 38A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature. Especially suited for use in PFC applications, this ST SiC diode will boost the performance in hard switching conditions. Its high forward surge capability ensures a good robustness during transient phases.
Applications
- ```
Key features
- No reverse recovery charge in application current range
- Switching behavior independent of temperature
- High forward surge capability
- Insulated package TO-220AC Ins:
- Insulated voltage: 2500 V rms
- Typical package capacitance: 7 pF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | C6D08065E-TR#C5713493Wolfspeed · TO-252 | Wolfspeed | TO-252 | 507 | ₹302.62 · 507 in stock | View |
 | C4D02120E#C7457230Wolfspeed · TO-252-2 | Wolfspeed | TO-252-2 | On request | ₹201.43 · 0 in stock | View |
 | C4D02120E-TR#C7459213Wolfspeed · TO-252-2 | Wolfspeed | TO-252-2 | 1 | ₹281.65 · 1 in stock | View |
 | STPSC6H065BY-TR#C2970494ST · DPAK | ST | DPAK | On request | ₹417.19 · 0 in stock | View |
 | HC6D04065E#C42389271HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 89 | ₹109.39 · 89 in stock | View |
