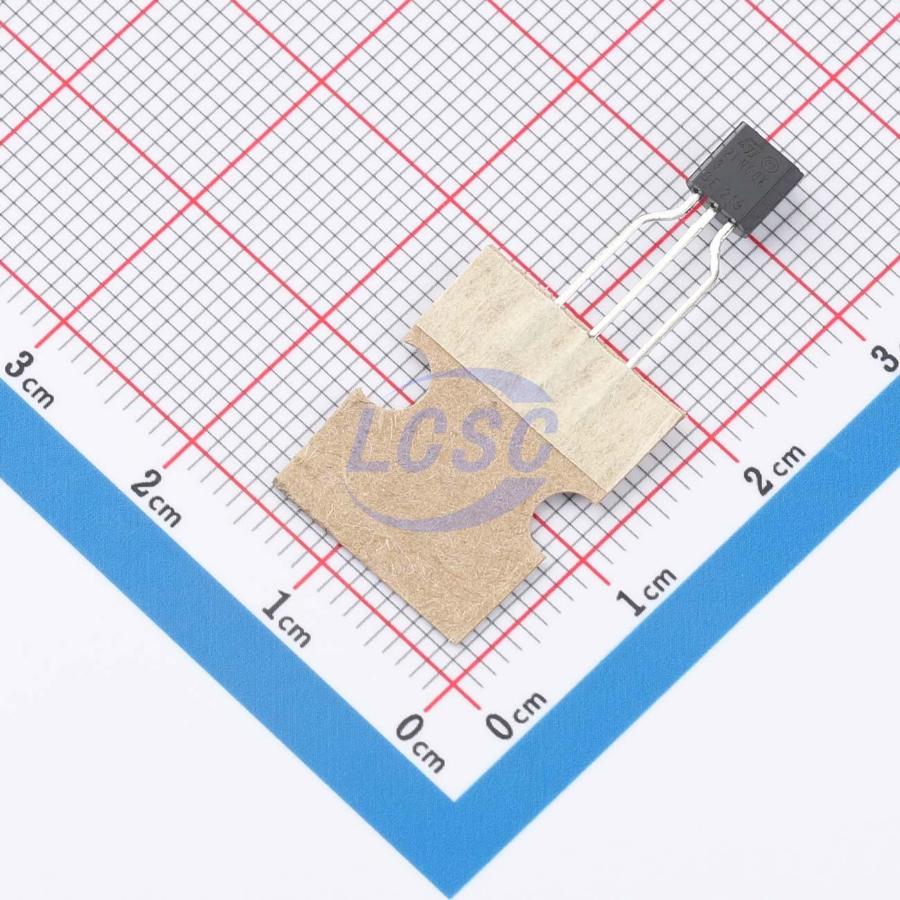

STQ2LN60K3-AP
600V 600mA 2.5W 4.5Ω@10V 1 N-channel N-Channel TO-92-3 Single FETs, MOSFETs RoHS
TO-92-3ROHS3 CompliantActive
MOSFET N-CH 600V 600mA TO-92-3
- Manufacturer
- ST
- Manufacturer part #
- STQ2LN60K3-AP
- Store part #
- C3281861
- Package / case
- TO-92-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C3281861
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.25 | ₹43.25 |
| 10+ | ₹42.16 | ₹421.60 |
| 30+ | ₹41.73 | ₹1,251.90 |
| 100+ | ₹41.08 | ₹4,108.00 |
1 × ₹43.25
₹43.25
excl. GST
₹51.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
STQ2LN60K3-AP
₹43.25 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 22pF
- Current - Continuous Drain(Id)
- 600mA
- Ciss-Input Capacitance
- 235pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 3.5pF
- RDS(on)
- 4.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
This MDmesh™ K3 power MOSFET is the result of improvements to STMicroelectronics' MDmesh™ technology, combined with a newly optimized vertical structure. The device features ultra-low on-resistance, excellent dynamic performance, and high avalanche capability, making it suitable for the most demanding applications.
Applications
- Switching applications
Key features
- 100% avalanche tested
- Extremely high dv/dt capability
- Extremely low intrinsic capacitance
- Improved diode reverse recovery characteristics
- Zener protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STQ2HNK60ZR-AP#C283625ST · TO-92 | ST | TO-92 | 367 | ₹72.99 · 367 in stock | View |
 | 1N60L-T92-K#C73299UTC · TO-92 | UTC | TO-92 | 1,000 | ₹17.16 · 1,000 in stock | View |
 | 1N65#C22459225YFW · TO-92 | YFW | TO-92 | 255 | ₹13.96 · 255 in stock | View |
 | 2N70#C5455842XCH · TO-92 | XCH | TO-92 | 970 | ₹16.43 · 970 in stock | View |
 | 1N60L-T92-B#C484513UTC · TO-92 | UTC | TO-92 | On request | ₹13.87 · 0 in stock | View |
