VBsemi ElecDatasheet (PDF)

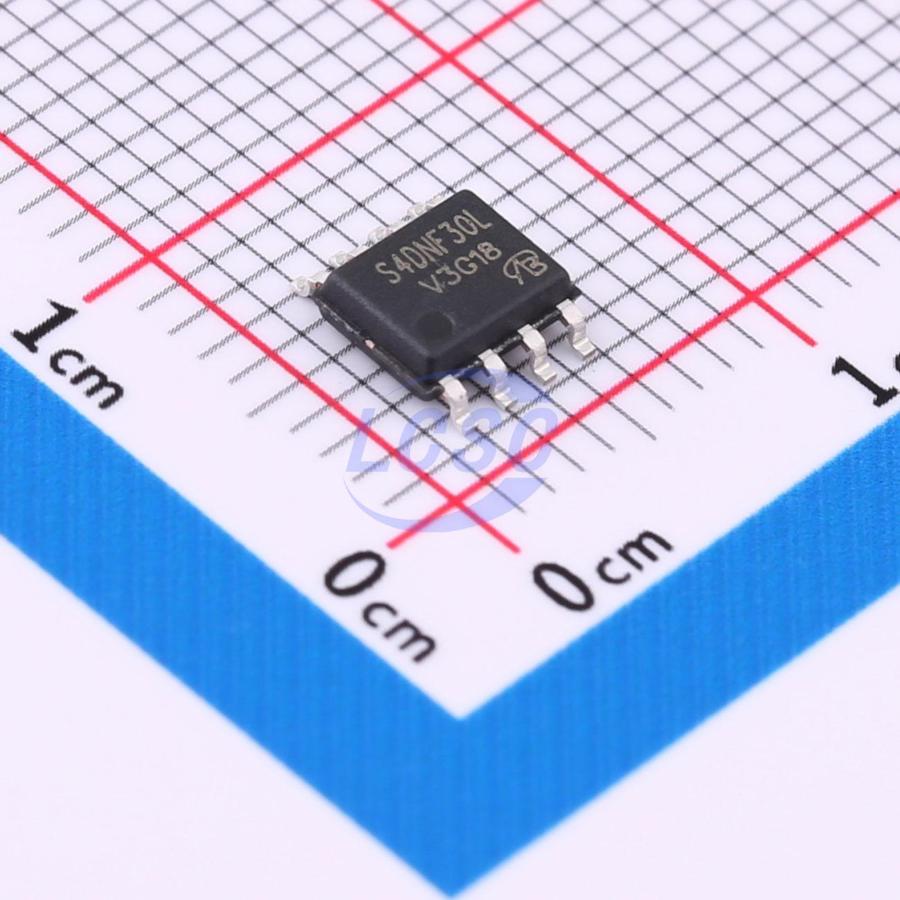

STS4DNF30L-VB
N-Channel 30V 6.8A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 6.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STS4DNF30L-VB
- Store part #
- C18212555
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C18212555
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.24 | ₹281.20 |
| 50+ | ₹46.49 | ₹2,324.50 |
| 150+ | ₹42.32 | ₹6,348.00 |
| 500+ | ₹37.11 | ₹18,555.00 |
| 2,500+ | ₹23.93 | ₹59,825.00 |
| 4,000+ | ₹22.54 | ₹90,160.00 |
5 × ₹56.24
₹281.20
excl. GST
₹331.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
STS4DNF30L-VB
₹281.20 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
Applications
- Set-Top Box - Low-Current DC/DC Power Supply
Key features
- Compliant with halogen-free requirements as defined in IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single-pulse avalanche ruggedness (UIS)
- 100% tested for gate resistance (Rg)
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS4450-NL-VB#C5456496VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹67.22 · 45 in stock | View |
 | SI4850DY-T1-E3-VB#C6705319VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 3,498 | ₹41.83 · 3,498 in stock | View |
 | TSM4436CS RLG-VB#C5355720VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹59.67 · 40 in stock | View |
 | VBZA4850#C700595VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 25 | ₹60.71 · 25 in stock | View |
 | SI4922BDY-T1-E3-VB#C7463654VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 9 | ₹54.63 · 9 in stock | View |
